FAG 54317 Double Direction Thrust Ball Bearing
MODEL 54317
$1,911.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
I.D.
3.346
O.D.
6.693
Product Type
Ball Thrust Bearings

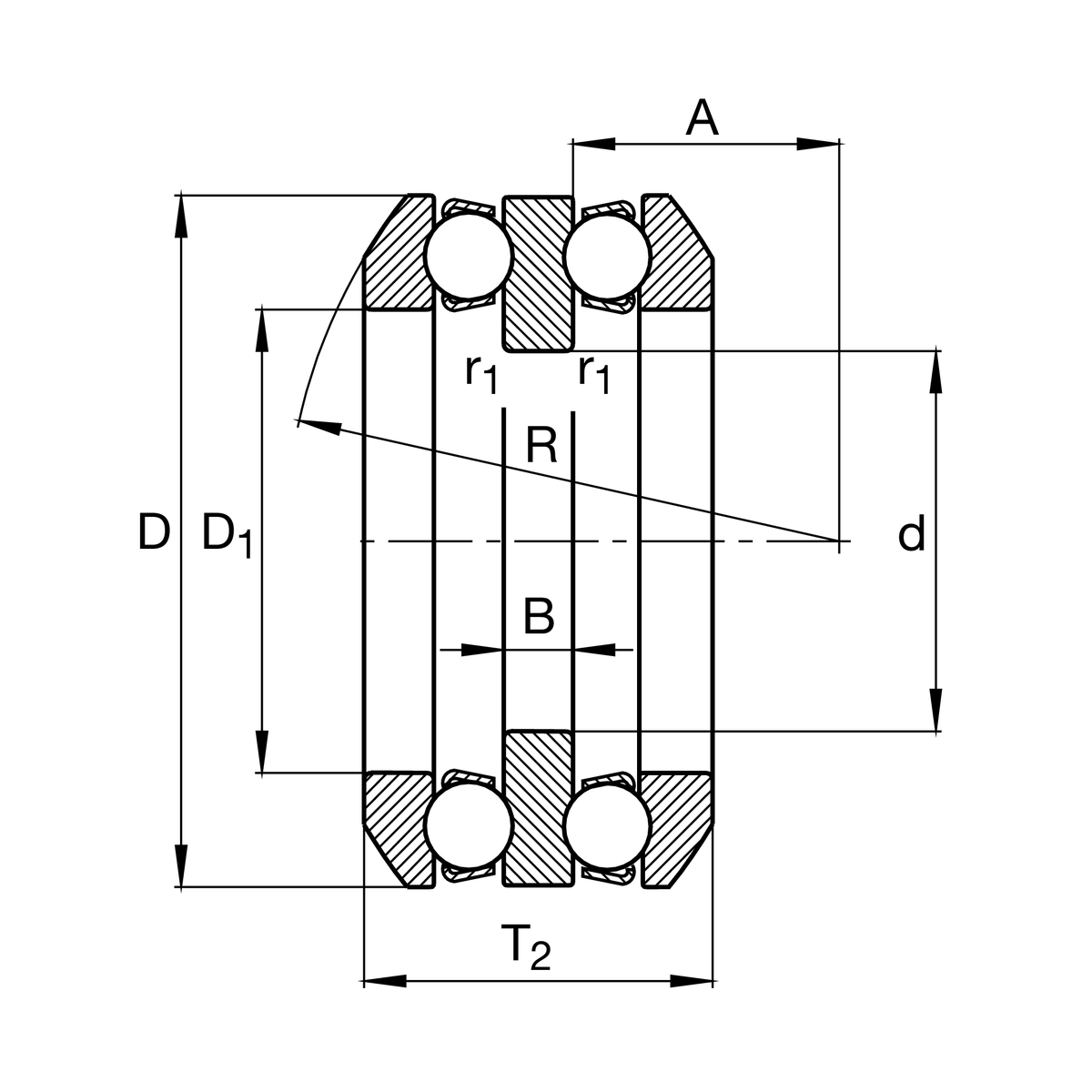

Specifications
| d | 70 mm | |
| D | 150 mm | |
| T 2 | 95, 2 mm |
| A | 39 mm | |
| B | 19 mm | |
| D 1 | 88 mm | |
| D a max | 115 mm | |
| d a max | 85 mm | |
| R | 112 mm | |
| r 1 min | 1 mm | |
| r a max | 1, 5 mm | |
| r a1 max | 1 mm | |
| r min | 1, 5 mm |
| Mass | 6, 27 kg | m |
|---|---|---|
| Basic dynamic load rating, axial | 186000 N | C a |
| Basic static load rating, axial | 415000 N | C 0a |
| Minimum load factor | 1, 1 | A |
| Limiting speed | 2260 1/min | n G |
| Fatigue limit load, axial | 16700 N | C ua |
