FAG 23228E1AK.M Double Row Spherical Roller Bearing
MODEL 23228E1AK.M
$1,560.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Application
Vibratory Applications
Bearing Material
Steel
Bore Type
Tapered 1:12
Cage
Outer Ring Guided
Cage Material
Brass Cage
Closure Type
Open
Fillet Radius
2.50 mm
Finish Coating
Uncoated
I.D.
5 1/2 in
Internal Clearance
C0
Lubrication Hole Type
Lubrication Groove & Hole
Max Rpm
2400 rpm
O.D.
250 mm
Operating Temperature Range
-30 of +200°C
Outer Ring Type
Not Split
Overall Width
88 mm
Precision Rating
Not Rated
Product Type
Spherical Roller Bearings
Series
232

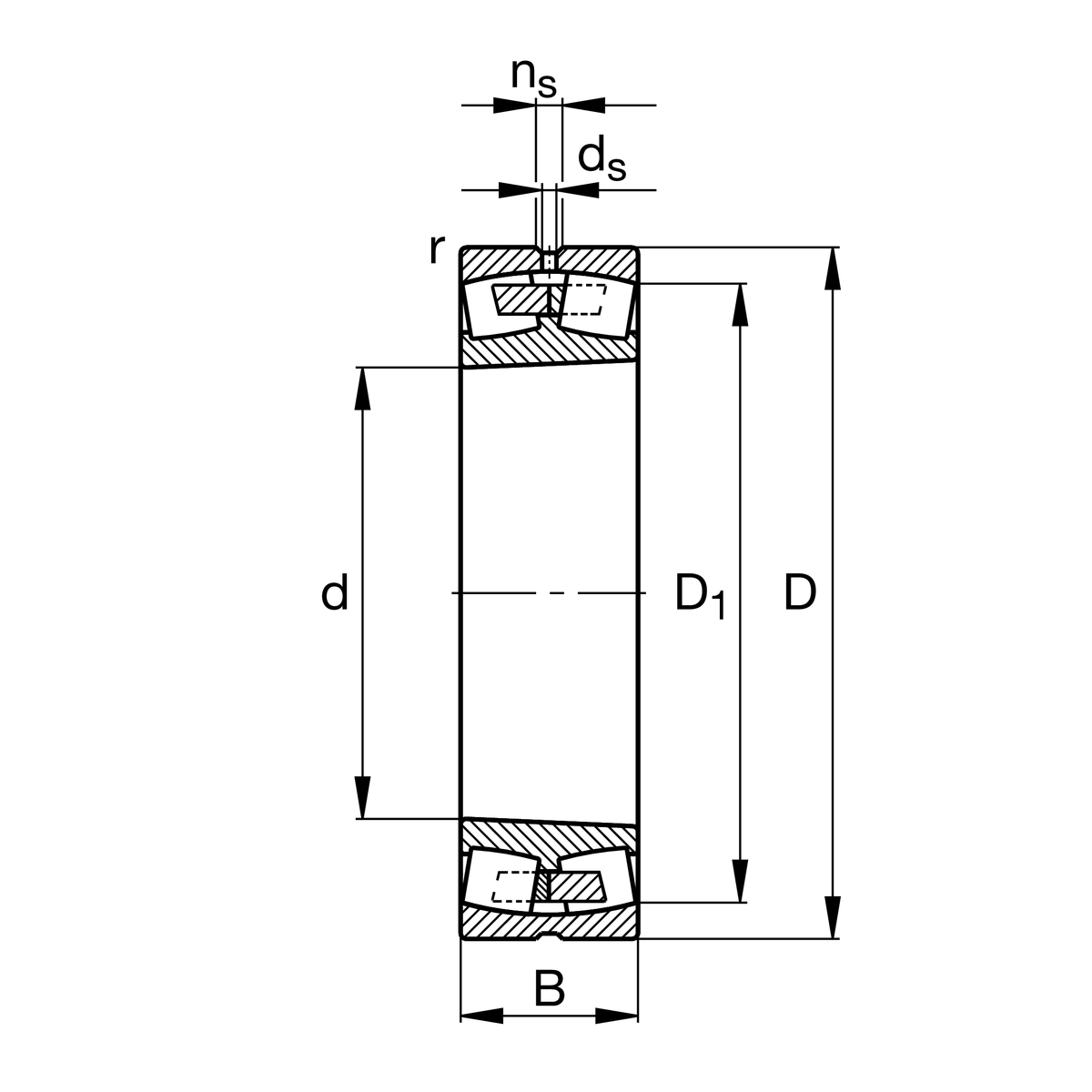

Specifications
| d | 140 mm | |
| D | 250 mm | |
| B | 88 mm |
| D 1 | 216 mm | |
| D a max | 236 mm | |
| d a min | 154 mm | |
| d s | 6, 3 mm | |
| n s | 12, 2 mm | |
| r a max | 2, 5 mm | |
| r min | 3 mm |
| Mass | 17, 6 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 1090000 N | C r |
| e | 0, 33 | |
| Y 1 | 2, 04 | |
| Y 2 | 3, 04 | |
| Basic static load rating, radial | 1400000 N | C 0r |
| Y 0 | 2 | |
| Limiting speed | 2600 1/min | n G |
| Reference speed | 1580 1/min | n B |
| Fatigue limit load, radial | 112000 N | C ur |
