- Brand: IPTCI Bearing
- Model: UCFL 207 23
- Condition: NEW
- SKU: 217711
IPTCI Bearing UCFL 207 23 2-Bolt Flange Set Screw Lock Bore Dia. 1 7/16" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 2.9 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$22.00 Each
Select Quantity
Unit of measure: each
Returnable:No
Payment methods:
Nov. 4, 2018
Mounted bearings are created and housed carefully to match specific industry needs. They come in diverse designs ranging from mounted roller bearings to inserts and mounted plain bearings. The design of the mounted bearings makes it possible to fit, support heavy load, and reduce vibration easily.
Read MoreAdditional Description
2-Bolt flange units with set screw lock.
- Standard duty
- Wide inner race bearing
- B-type or L3-type seals
- Available with high temp. bearing, see HUCFL

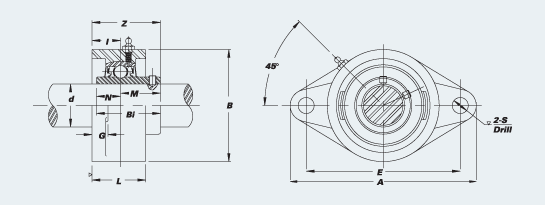

Unit Number: UCFL 207-23UCFL 207-23
| A | E | I | G | L | S | B | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 11/32 | 5 1/8 | 3/4 | 9/16 | 1 11/32 | 33/64 | 3 17/32 | 1 3/4 | 1.6890 | 0.6890 | 1.0000 | 7/16 |
