#219102
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: SUCTFL 202 10
- Condition: NEW
- SKU: 219102
IPTCI Bearing SUCTFL 202 10 Stainless Insert Thermoplastic Housing 2-Bolt Flange Set Screw Lock Bore Dia. 5/8"
View additional description- Typically ships in: 1 day
- Weight: 0.5 lb
- Contact supplier for technical support on: 952-224-7030
$52.85 Each
Select Quantity
Before setting off to buy that mounted bearing, it is important to have the right technical specifications. The simplest way to get it right is using the technical person who runs the machine. The expert will help to specify the following details;
-
The right shaft securing method.
-
The performance specifications such as optimal speed.
-
The mounted bearing load and operating temperature.
-
The best housing material.
Additional Description
Thermoplastic 2-bolt flanges with set screw lock.
- Stainless Steel bearing insert
- End caps available
- B-typeseals
- L3-type seals available in some sizes Consult IPTCI for speed limitations
Unit Number: SUCTFL 202-10

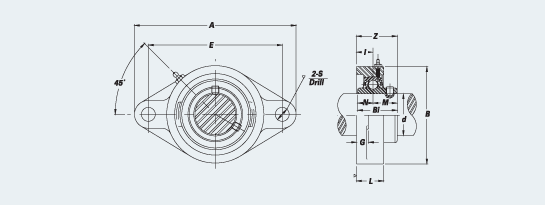

| A | E | I | G | L | S | B | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 7/16 | 3 17/32 | 39/64 | 7/16 | 1 1/32 | 7/16 | 2 17/32 | 1 21/64 | 1.2205 | 0.5000 | 0.7205 | 3/8 |
