#217980
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFB 207 20
- Condition: NEW
- SKU: 217980
IPTCI Bearing UCFB 207 20 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 1/4" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 2.9 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$25.80 Each
Select Quantity
Minute particles can compromise the performance of your mounted bearing. The problem becomes worse if the particles accumulate or become bigger. The most important thing is ensuring you keep the mounted bearing clean and avoid dust throughout the assembly line and operations.
Read MoreAdditional Description
3-Bolt flange bracket units with set screw lock.
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals available in some sizes

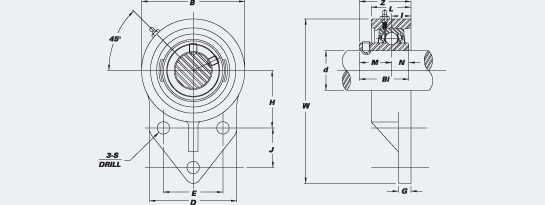

Unit Number: UCFB 207-20UCFB 207-20
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 1/8 | 3 3/4 | 3 1/4 | 1 7/16 | 33/64 | 1/2 | 2 3/8 | 1 1/4 | 2 | 53/64 | 1 3/4 | 1.6890 | 0.6890 | 1.0000 | 7/16 |
