#217985
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFB 208 24
- Condition: NEW
- SKU: 217985
IPTCI Bearing UCFB 208 24 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 1/2" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 4.0 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$30.92 Each
Select Quantity
Before setting off to buy that mounted bearing, it is important to have the right technical specifications. The simplest way to get it right is using the technical person who runs the machine. The expert will help to specify the following details;
-
The right shaft securing method.
-
The performance specifications such as optimal speed.
-
The mounted bearing load and operating temperature.
-
The best housing material.
Additional Description
3-Bolt flange bracket units with set screw lock.
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals available in some sizes

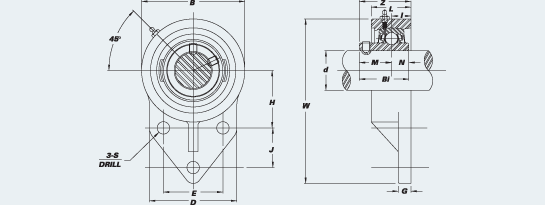

Unit Number: UCFB 208-24UCFB 208-24
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 15/32 | 3 15/16 | 3 1/16 | 1 11/32 | 7/16 | 5/8 | 2 23/64 | 1 39/64 | 1 31/32 | 53/64 | 2 1/64 | 1.9370 | 0.7480 | 1.1890 | 3/8 |
