#217990
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFB 209 28
- Condition: NEW
- SKU: 217990
IPTCI Bearing UCFB 209 28 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 3/4" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 4.4 lb
- Contact supplier for technical support on: 952-224-7030
$36.29 Each
Select Quantity
Nov. 4, 2018
Even when you install shields to keep the particles away from the bearings, minor gaps can still allow particles to enter. Here are some tricks of keeping the mounted bearings away from particles.
Read MoreAdditional Description
3-Bolt flange bracket units with set screw lock.
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals available in some sizes

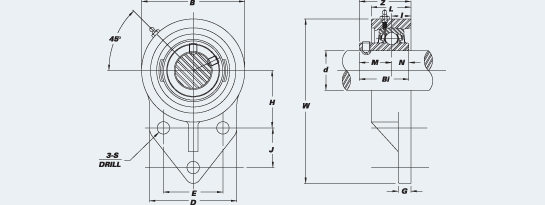

Unit Number: UCFB 209-28UCFB 209-28
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 27/32 | 4 3/16 | 3 5/32 | 1 11/32 | 15/32 | 23/32 | 2 9/16 | 1 11/16 | 2 1/8 | 53/64 | 2 1/16 | 1.9370 | 0.7480 | 1.1890 | 3/8 |
