#217992
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFB 210 30
- Condition: NEW
- SKU: 217992
IPTCI Bearing UCFB 210 30 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 7/8" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 5.1 lb
- Contact supplier for technical support on: 952-224-7030
$43.03 Each
Select Quantity
Nov. 4, 2018
While selecting the right mounted bearing and having it properly installed are very important, optimal performance will largely depend on maintenance. Here, you need to lower the risk of the bearing getting rusty and assess the performance regularly.
Read MoreAdditional Description
3-Bolt flange bracket units with set screw lock.
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals available in some sizes

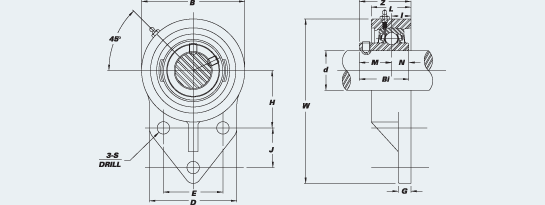

Unit Number: UCFB 210-30
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 1/2 | 4 5/8 | 4 | 1 1/2 | 33/64 | 1/2 | 2 15/16 | 1 5/8 | 2 3/4 | 53/64 | 2 5/32 | 2.0315 | 0.7480 | 1.2835 | 7/16 |
