Image for Illustration purposes only. Actual product may vary
IPTCI Bearing SUCTFB 204 12 Stainless Insert Thermoplastic Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 3/4"
MODEL SUCTFB 204 12
Contact supplier for technical support on: 952-224-7030
$72.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
Thermoplastic 3-bolt flanges with set screw lock.
- Stainless Steel bearing insert
- End caps available
- B-type seals
- L3-type seals available in some sizes Consult IPTCI for speed limitations
Unit Number: SUCTFB 204-12SUCTFB 204-12

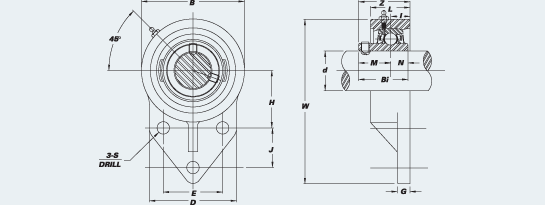

| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 1/4 | 2 1/2 | 2 7/16 | 1 1/32 | 25/64 | 7/16 | 1 11/16 | 7/8 | 1 1/2 | 19/32 | 1 5/16 | 1.2205 | 0.5000 | 0.7205 | 5/16 |
Dimensions are in Inches.
