Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: SUCTFB 206 18
- Condition: NEW
- SKU: 219144
IPTCI Bearing SUCTFB 206 18 Stainless Insert Thermoplastic Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 1/8"View additional description
- Typically ships in: 1 day
- Weight: 1.1 lb
- Contact supplier for technical support on: 952-224-7030
Unit of measure: each
Returnable: See conditions
Before setting off to buy that mounted bearing, it is important to have the right technical specifications. The simplest way to get it right is using the technical person who runs the machine. The expert will help to specify the following details;
The right shaft securing method.
The performance specifications such as optimal speed.
The mounted bearing load and operating temperature.
The best housing material.
Thermoplastic 3-bolt flanges with set screw lock.
- Stainless Steel bearing insert
- End caps available
- L3-type seals available in some sizes Consult IPTCI for speed limitations

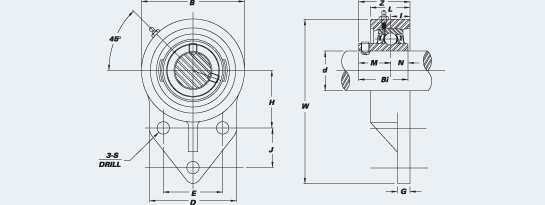

Unit Number: SUCTFB 206-18
|5 3/8||3 1/4||3||1 1/4||25/64||17/32||2 1/16||1 1/4||1 7/8||45/64||1 19/32||1.5000||0.6260||0.8740||5/16|
