Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: SUCTFB 207 20
- Condition: NEW
- SKU: 219148
IPTCI Bearing SUCTFB 207 20 Stainless Insert Thermoplastic Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 1/4"View additional description
- Typically ships in: 1 day
- Weight: 1.5 lb
- Unit of measure: each
- Contact supplier for technical support on: 952-224-7030
ON ORDERS OVER $20
Returnable: See conditions
Before setting off to buy that mounted bearing, it is important to have the right technical specifications. The simplest way to get it right is using the technical person who runs the machine. The expert will help to specify the following details;
The right shaft securing method.
The performance specifications such as optimal speed.
The mounted bearing load and operating temperature.
The best housing material.
Corrosion Resistant 3 Bolt Flange Brackets - SUCTFB 207-20
Thermoplastic 3-bolt flanges with set screw lock.
- Stainless Steel bearing insert
- End caps available
- L3-type seals available in some sizes Consult IPTCI for speed limitations

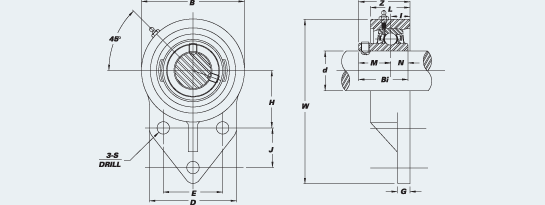

Unit Number: SUCTFB 207-20SUCTFB 207-20
|6 1/8||3 3/4||3 1/2||1 7/16||33/64||41/64||2 3/8||1 1/4||2||3/4||1 49/64||1.6890||0.6890||1.0000||7/16|
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.Read more
We are very happy with your products and service.Read more
great itemRead more
Just like factory parts
Just like factory partsRead more
