#219539
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: SUCNPFB 204 20MM
- Condition: NEW
- SKU: 219539
IPTCI Bearing SUCNPFB 204 20MM Stainless Insert Nickel Plated Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 20mm
View additional description- Typically ships in: 1 day
- Weight: 1.5 lb
- Contact supplier for technical support on: 952-224-7030
$71.02 Each
Select Quantity
Mounted bearings are created and housed carefully to match specific industry needs. They come in diverse designs ranging from mounted roller bearings to inserts and mounted plain bearings. The design of the mounted bearings makes it possible to fit, support heavy load, and reduce vibration easily.
Read MoreAdditional Description
Nickel plated flange brackets.
- Stainless Steel bearing insert
- B-typeseals

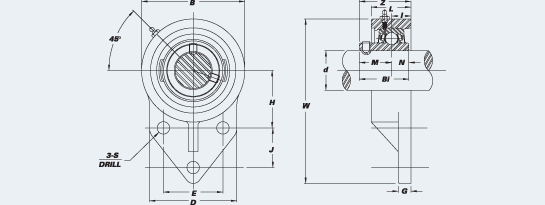

Unit Number: SUCNPFB 204
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 1/4 | 2 1/2 | 2 3/8 | 1 | 25/64 | 5/16 | 1 11/16 | 7/8 | 1 1/2 | 5/8 | 1 5/16 | 1.2205 | 0.5000 | 0.7205 | 5/16 |
