Image for Illustration purposes only. Actual product may vary
IPTCI Bearing CUCNPFB 208 40MM Hard Chrome Coated Insert Nickel Plated Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 40mm
MODEL CUCNPFB 208 40MM
Contact supplier for technical support on: 952-224-7030
$105.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
Nickel plated flange brackets.
- Hard Chrome Coated bearing insert
- B-type seals
Unit Number: CUCNPFB 208

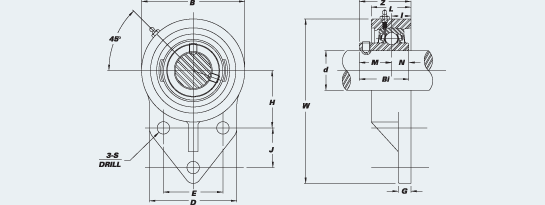

| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 15/32 | 3 15/16 | 3 1/16 | 1 11/32 | 7/16 | 5/8 | 2 23/64 | 1 39/64 | 1 31/32 | 53/64 | 2 1/64 | 1.9370 | 0.7480 | 1.1890 | 3/8 |
Dimensions are in Inches.
SKU: 1152957
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.
