#217610
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: NANF 205 16
- Condition: NEW
- SKU: 217610
IPTCI Bearing NANF 205 16 4-Bolt Flange Eccentric Locking Collar Bore Dia. 1" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 2.1 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 3
$16.66 Each
Select Quantity
Jan. 6, 2019
To prevent misalignment, it is important to inspect the system’s shaft as well as housings to identify runout bearing seats, shoulders, and precision-grade lockouts.
Read MoreAdditional Description
4-Bolt flange units with eccentric locking collar.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- B-type or L3-type seals

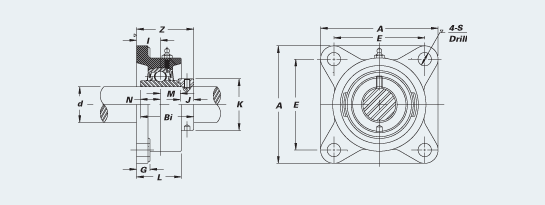

Unit Number: NANF 205-16NANF 205-16
| A | E | I | G | L | S | Z | Bi | N | M | J | K | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 3/4 | 2 3/4 | 25/32 | 19/32 | 1 7/32 | 29/64 | 1 27/32 | 1.7441 | 0.6850 | 0.6850 | 0.3740 | 1.5000 | 3/8 |
