#218342
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFX7-35MM
- Condition: NEW
- SKU: 218342
IPTCI Bearing UCFX7-35MM BORE DIAMETER: 35 MILLIMETER HOUSING: 4 BOLT FLANGE LOCKING: SET SCREW
View additional description- Typically ships in: 1 day
- Weight: 4.4 lb
- Contact supplier for technical support on: 952-224-7030
$47.64 Each
Select Quantity
Jan. 6, 2019
It is estimated that about 80% of the bearing failure arise from improper lubrication. This can be insufficient lubrication, improper lubrication, or high temperatures that degrade the lub.
Read MoreAdditional Description
4-Bolt flange units with set screw lock.
- Medium duty
- Wide inner race bearing with greater load carrying capacity than standard duty
- Cast iron housing
- B-type seals
- L3-type seals available in some sizes

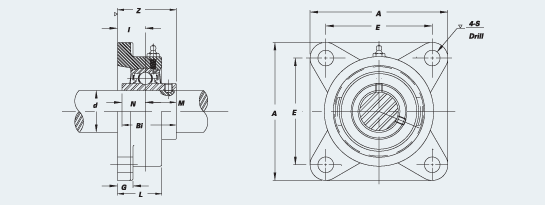

Unit Number: UCF X07
| A | E | I | G | L | S | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 1/8 | 4 | 53/64 | 19/32 | 1 13/32 | 35/64 | 2 1/32 | 1.9370 | 0.7480 | 1.1890 | 1/2 |
