- Brand: IPTCI Bearing
- Model: UCFX 13 65MM
- Condition: NEW
- SKU: 218362
IPTCI Bearing UCFX 13 65MM 4-Bolt Flange Set Screw Lock Medium Duty Bore Dia. 65mm Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 14.1 lb
- Contact supplier for technical support on: 952-224-7030
$129.37 Each
Select Quantity
Jan. 6, 2019
To diagnose false brinelling, check for wear marks in the axial direction on the rolling element pitch as opposed to marks that result from incorrect mounting.
Read MoreAdditional Description
4-Bolt flange units with set screw lock.
- Medium duty
- Wide inner race bearing with greater load carrying capacity than standard duty
- Cast iron housing
- B-type seals
- L3-type seals available in some sizes

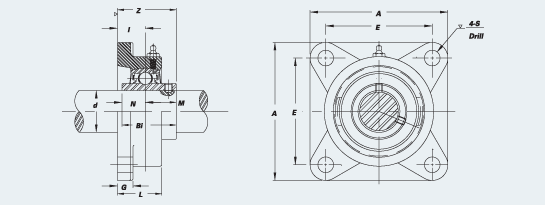

Unit Number: UCF X13

A | E | I | G | L | S | Z | Bi | N | M | Bolt Used |
---|---|---|---|---|---|---|---|---|---|---|
7 3/8 | 5 7/8 | 1 11/32 | 13/16 | 2 5/16 | 43/64 | 3 3/32 | 2.9370 | 1.1890 | 1.7480 | 9/16 |
