Image for Illustration purposes only. Actual product may vary
IPTCI Bearing UCFCS 212 39 4-Bolt Piloted Flange Set Screw Lock Bore Dia. 2 7/16" Wide Inner Race Insert
MODEL UCFCS 212 39
Contact supplier for technical support on: 952-224-7030
$118.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
4-Bolt piloted flange units with set screw lock.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals available in some sizes
Unit Number: UCFCS 212-39

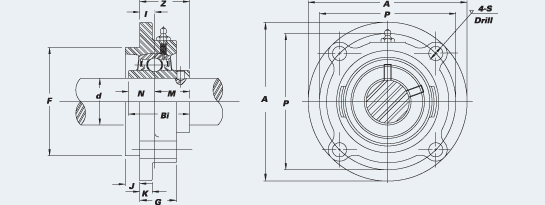

| A | P | S | J | K | G | F | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 3/32 | 6 | 5/8 | 55/64 | 1/2 | 1 1/32 | 5.000 | 5/32 | 1 23/32 | 2.5630 | 1.0000 | 1.5630 | 1/2 |
Dimensions are in Inches.
SKU: 1152957
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.
