Image for Illustration purposes only. Actual product may vary
IPTCI Bearing UCFCX8-40MM BORE DIAMETER: 40 MILLIMETER HOUSING: 4-BOLT PILOTED FLANGE LOCKING: SET SCREW
MODEL UCFCX8-40MM
Contact supplier for technical support on: 952-224-7030
$60.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
4-Bolt piloted flange units with set screw lock.
- Medium duty
- Wide inner race bearing with greater load carrying capacity than standard duty
- B-type seals
- L3-type seals available in some sizes

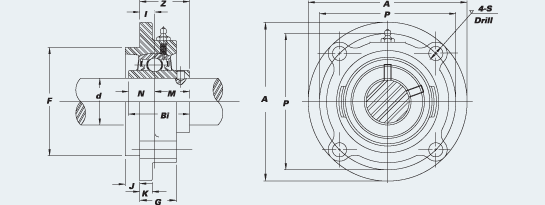

Unit Number: UCFC X08
| A | P | S | J | K | G | F | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 1/4 | 4 3/8 | 15/32 | 7/16 | 7/16 | 1 1/32 | 3.625 | 23/64 | 1 17/32 | 1.9370 | 0.7480 | 1.1890 | 3/8 |
Dimensions are in Inches.
SKU: 1152957
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.
Read moreSKU: 1152690
Itpci bearings
IPTCI bearings seem to perform well for us, as we have had no returns for failure. Prices are reasonable and service is prompt.
