Image for Illustration purposes only. Actual product may vary
IPTCI Bearing UCPL 208 25 Pillow Block Set Screw Lock Low Shaft Height Bore Dia. 1 9/16" Wide Inner Race Insert
MODEL UCPL 208 25
Contact supplier for technical support on: 952-224-7030
$39.13 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
Low shaft height with set screw lock.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- B-type or L3-type seals
Unit Number: UCPL 208-25

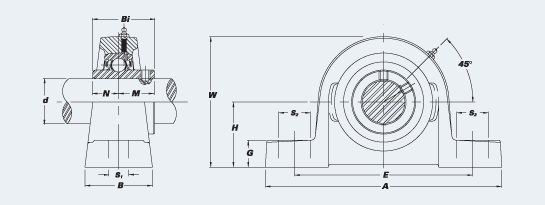

| H | A | E | B | S2 | S1 | G | W | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 15/16 | 7 1/8 | 5 7/16 | 2 | 7/8 | 9/16 | 13/16 | 4 | 1.9370 | 0.7480 | 1.1890 | 1/2 |
Dimensions are in Inches.
SKU: 1152957
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.
