Image for Illustration purposes only. Actual product may vary
IPTCI Bearing UCPX 15 48 Pillow Block Set Screw Lock Medium Duty Bore Dia. 3" Wide Inner Race Insert
MODEL UCPX 15 48
Contact supplier for technical support on: 952-224-7030
$228.48 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: See conditions
Still Deciding?
Add this item to your saved items and easily come back later.
Pillow blocks with set screw lock.
- Medium duty
- Cast iron housing
- Wide inner race bearing with greater load carrying capacity than standard duty
- B-type seals
- L3-type seals available in some sizes

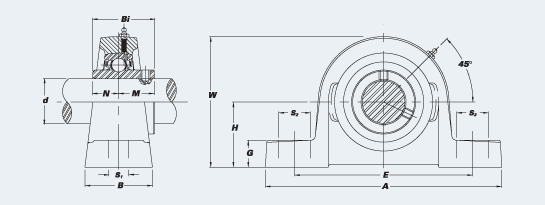

Unit Number: UCP X15-48UCP X15-48
| H | A | E | B | S2 | S1 | G | W | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 1/2 | 11 3/4 | 9 1/8 | 3 | 1 7/16 | 1 | 1 3/8 | 7 1/32 | 3.2520 | 1.3110 | 1.9410 | 7/8 |
Dimensions are in Inches.
SKU: 1152957
Worked, 7/16" bolt holes though.
For some reason I was expecting this to have 1/2" bolt holes for mounting it. They are 7/16". It still worked for my application though.
