Pramet A16T-DDUNR 3 6788636 Boring Bar ISO D - Right Hand
MODEL 6788636
$276.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

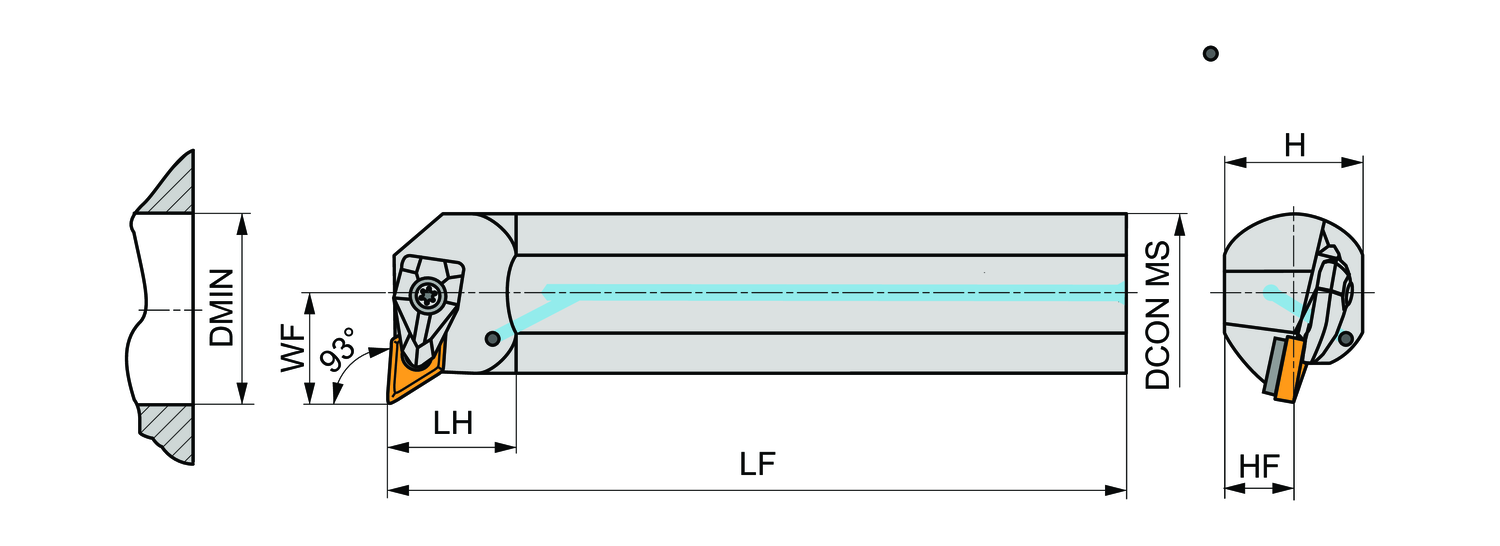

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Functional length - inch (LF)
12
Functional width - inch (WF)
0.75
Head length - inch (LH)
1.142
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
1.299
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.906
Double clamp boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation DN.. 33. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 1'' diameter x 12'' long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
