Image for Illustration purposes only. Actual product may vary
Pramet E10M-SDUCL 07-ER 6760498 Boring Bar Carbide ISO S - Left Hand
MODEL 6760498
$369.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

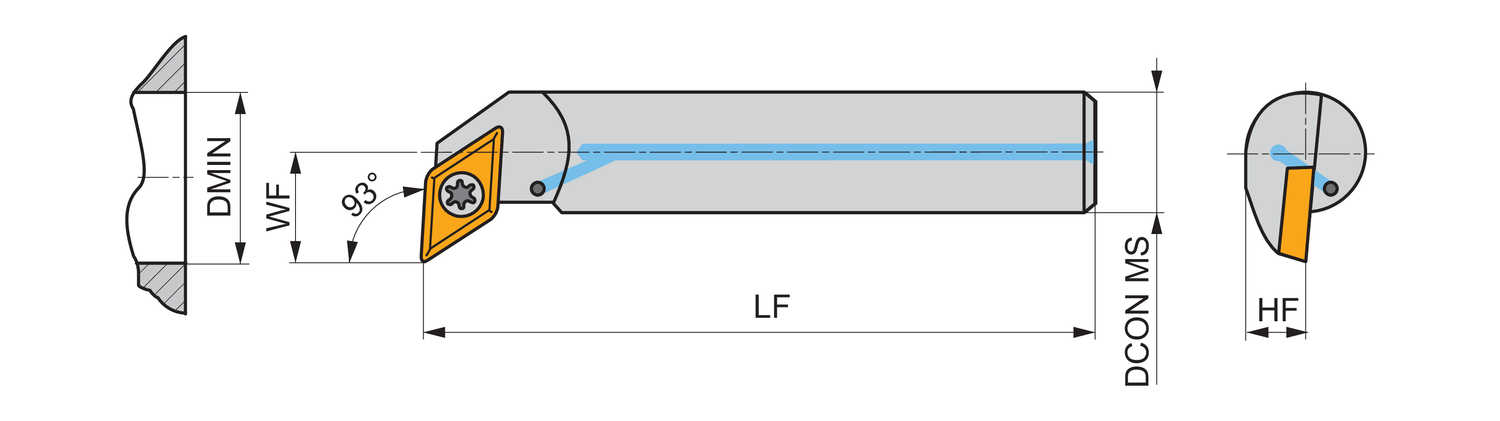

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.22
Functional height - millimeter (HF)
5.6
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.354
Functional width - millimeter (WF)
9
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.591
Minimum bore diameter - millimeter (DMIN)
15
Ortogonal rake angle (GAMO)
0
Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), left hand 93° end cutting with off-set shank, carbide with coolant hole, 10mm diameter x 150mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
