Pramet E1216M-SELPL 05 6760776 Boring Bar Carbide ISO S - Left Hand
MODEL 6760776
$833.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

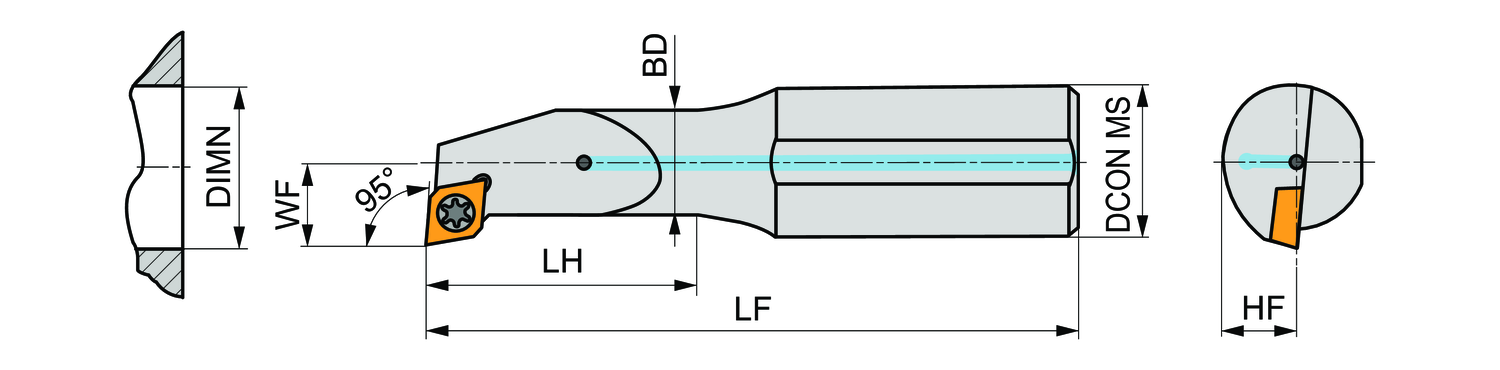

Body diameter - inch (BD)
0.472
Body diameter - millimeter (BD)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.354
Functional width - millimeter (WF)
9
Head length - inch (LH)
2.165
Head length - millimeter (LH)
55
Inclination angle (LAMS)
-2
Minimum bore diameter - inch (DMIN)
0.63
Minimum bore diameter - millimeter (DMIN)
16
Ortogonal rake angle (GAMO)
0
Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), left hand 95° side and end cutting with off-set shank, carbide with coolant hole, 12mm diameter x 150mm long for taper boring and longitudinal boring with and without shoulder
