Pramet S25T-SSSCR 09 6757095 Boring Bar ISO S - Right Hand
MODEL 6757095
$178.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

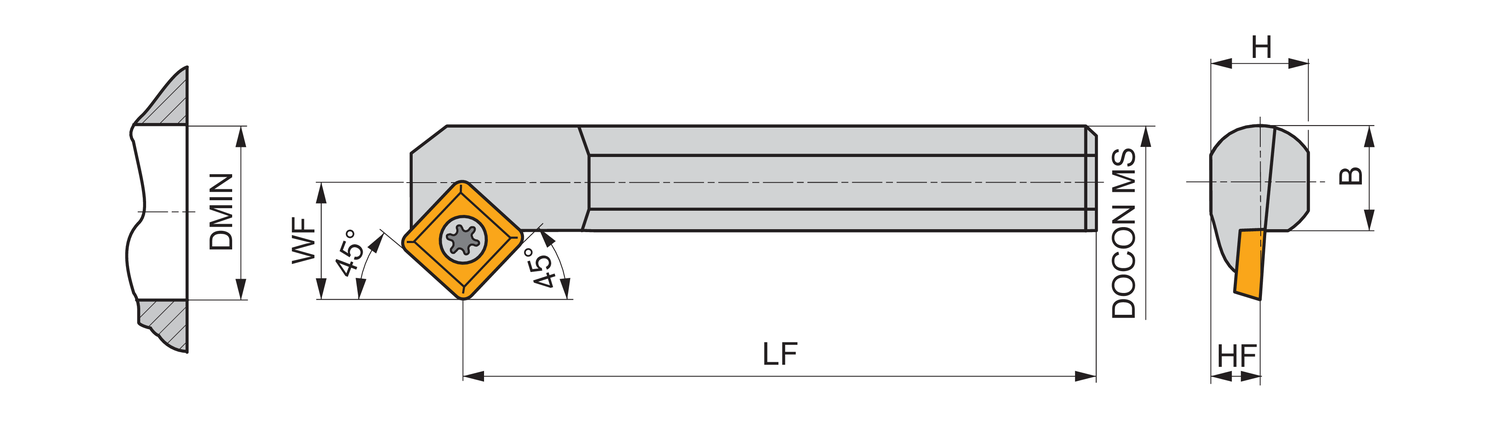

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Direction of tool
Right
Functional length - inch (LF)
11.811
Functional length - millimeter (LF)
300
Functional width - inch (WF)
0.669
Functional width - millimeter (WF)
17
Inclination angle (LAMS)
-3
Minimum bore diameter - inch (DMIN)
1.26
Minimum bore diameter - millimeter (DMIN)
32
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.906
Shank height - millimeter (H)
23
Shank width - inch (B)
0.906
Shank width - millimeter (B)
23
Screw clamp boring bar for holding a square positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation SC.. 09T3.. ), right hand 45° side cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and back chamfering
