Pramet C4-DCLNR-27055-16 7809770 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809770
$250.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

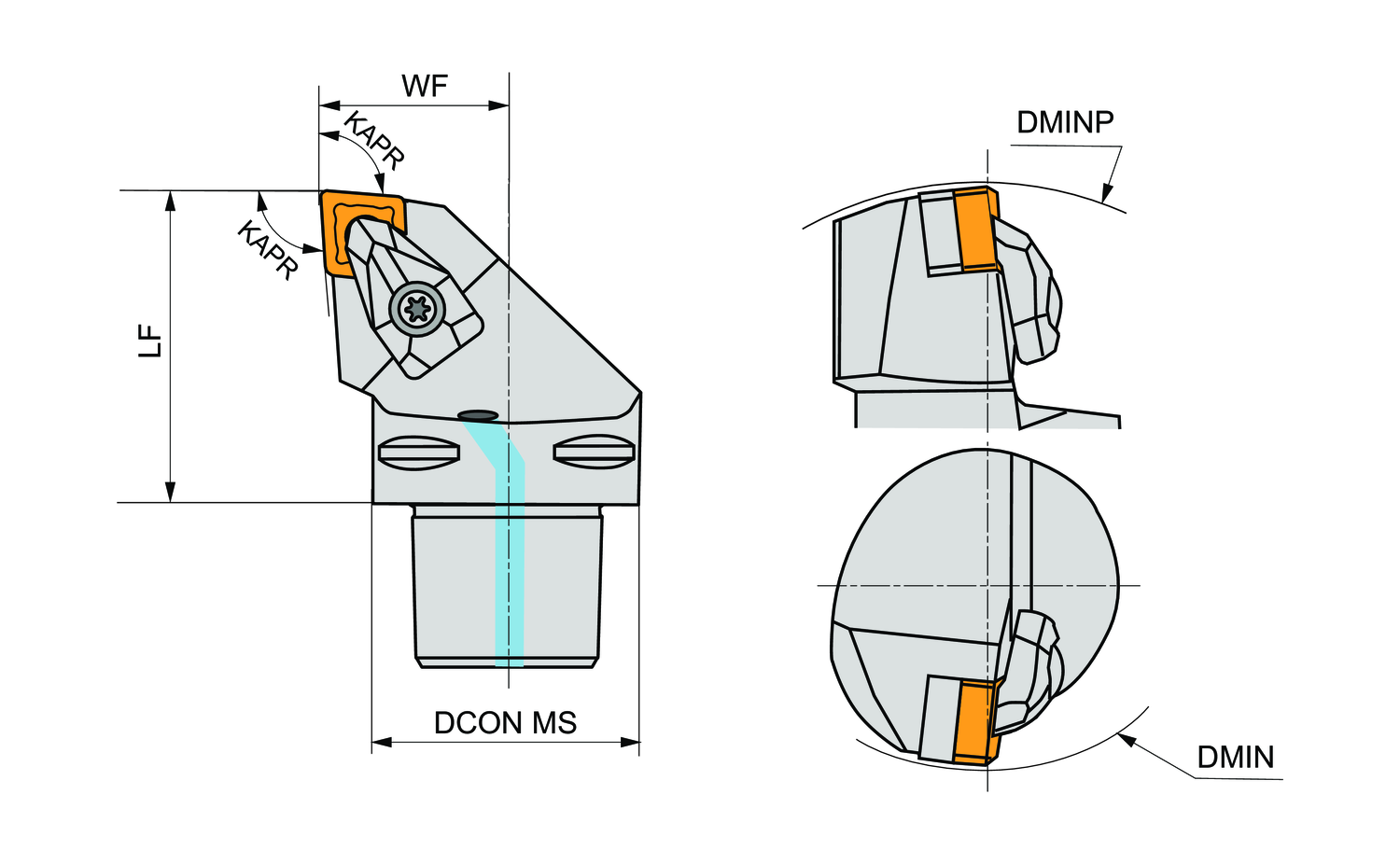

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
2.165
Functional length - millimeter (LF)
55
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Inclination angle (LAMS)
-6
Minimum bore diameter - inch (DMIN)
4.921
Minimum bore diameter - millimeter (DMIN)
125
Minimum bore diameter Perpendicular - millimeter (DMINP)
145
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 55mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
