Pramet C4-DVJNL-27062-16 7809812 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809812
$250.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

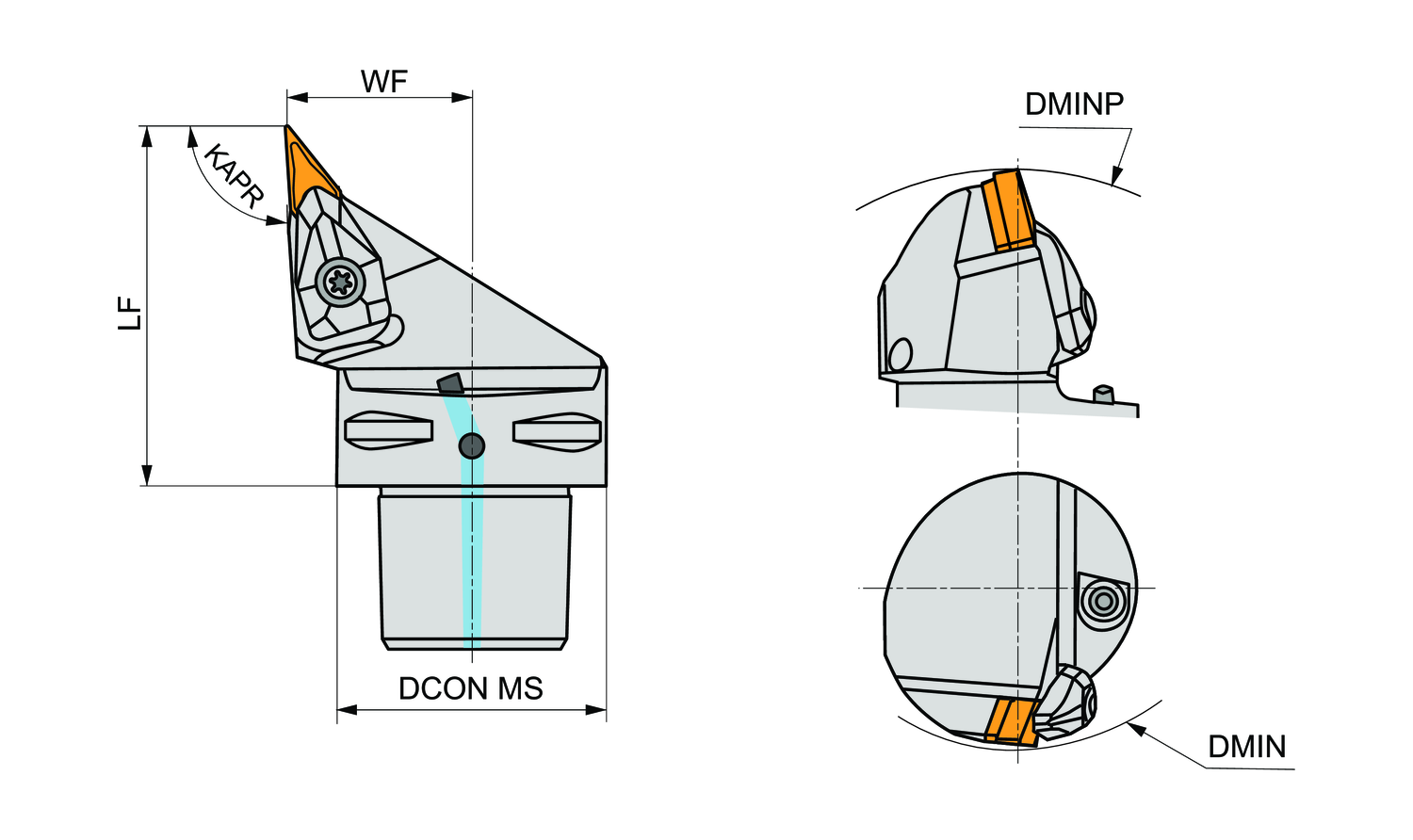

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
2.441
Functional length - millimeter (LF)
62
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Inclination angle (LAMS)
-13
Minimum bore diameter - inch (DMIN)
2.362
Minimum bore diameter - millimeter (DMIN)
60
Minimum bore diameter Perpendicular - millimeter (DMINP)
152
Ortogonal rake angle (GAMO)
-4
Tool cutting edge angle (KAPR)
93
Double clamp turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), left hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 62mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
| Brand | Pramet |
| Model | 7809813 |
