Pramet C5-DSDNN-00060-12 7809804 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809804
$278.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

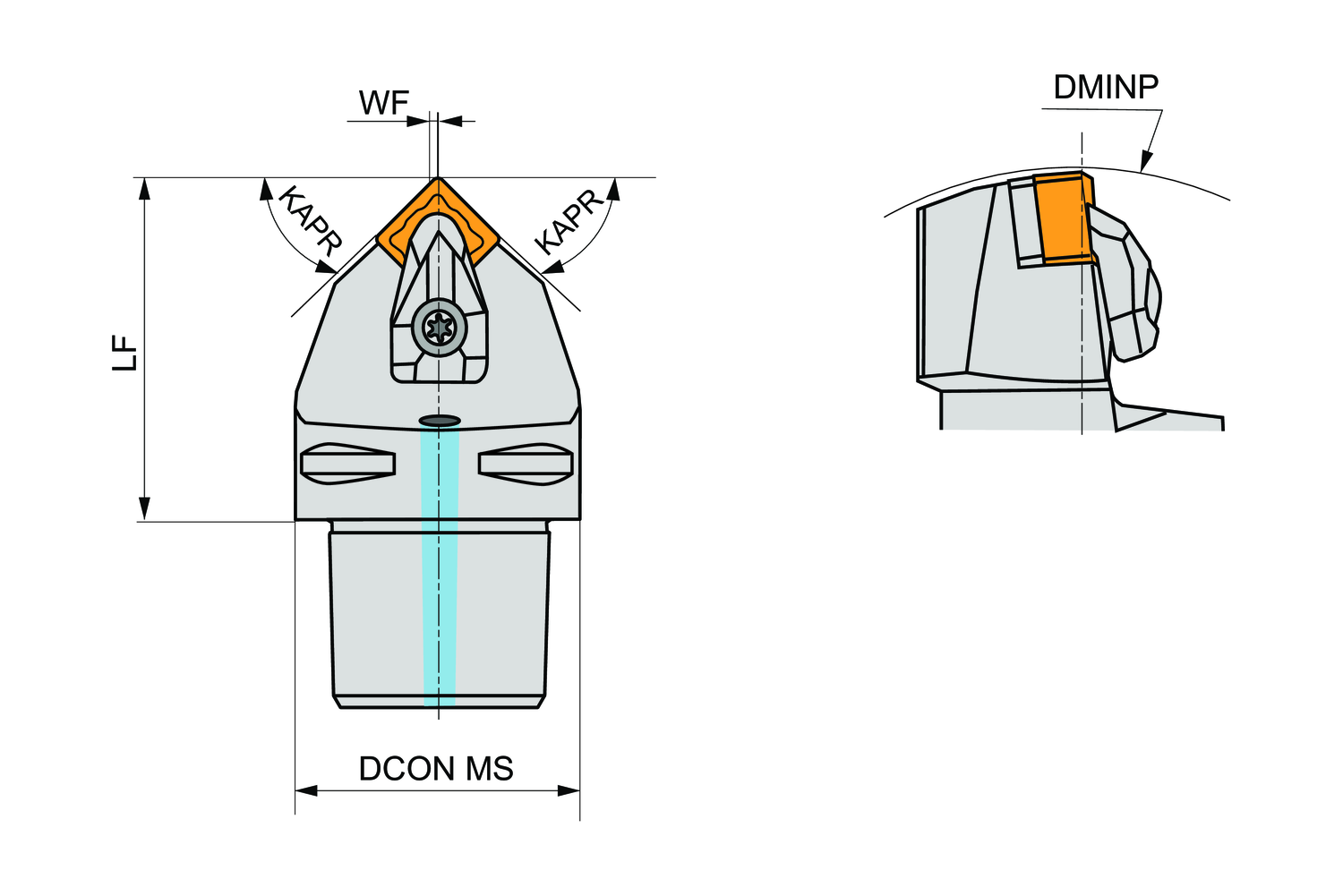

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Coolant supply property (CSP)
1
Direction of tool
Neutral
Functional length - inch (LF)
2.362
Functional length - millimeter (LF)
60
Functional width - inch (WF)
0.012
Functional width - millimeter (WF)
0.3
Inclination angle (LAMS)
-6
Minimum bore diameter Perpendicular - millimeter (DMINP)
165
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
45
Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
