Pramet DCLNL 1616 H 12 7028419 Turning Toolholder ISO D
MODEL 7028419
$96.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

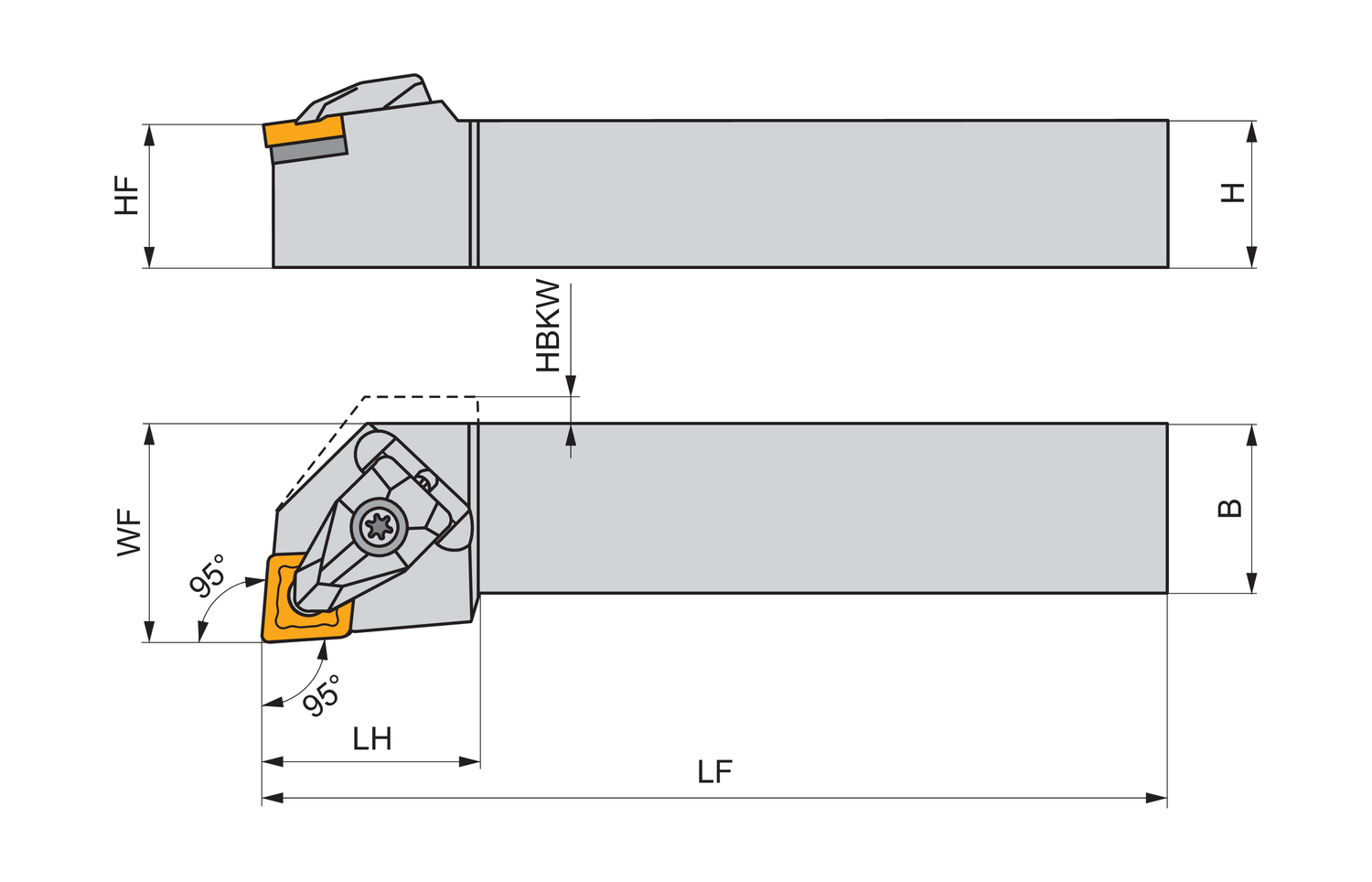

Clamping Type Code (MTP)
System D
Direction of tool
Left
Functional height - inch (HF)
0.63
Functional height - millimeter (HF)
16
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.787
Functional width - millimeter (WF)
20
Head bottom offset width - millimeter (HBKW)
4.5
Head length - inch (LH)
1.268
Head length - millimeter (LH)
32.2
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.63
Shank height - millimeter (H)
16
Shank width - inch (B)
0.63
Shank width - millimeter (B)
16
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
