Pramet DDJNL 2020 K 15 6757935 Turning Toolholder ISO D
MODEL 6757935
$107.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

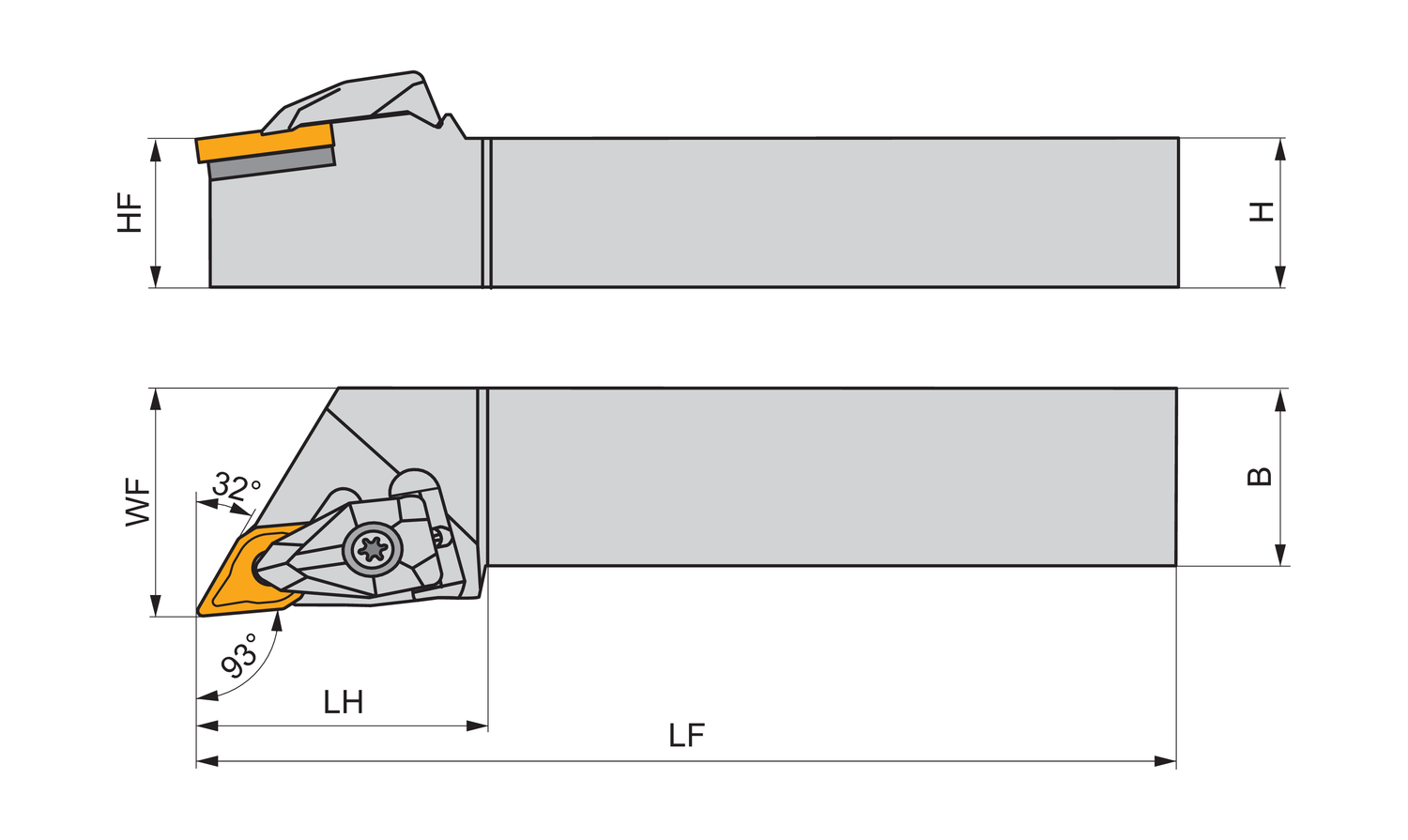

Clamping Type Code (MTP)
System D
Direction of tool
Left
Functional height - inch (HF)
0.787
Functional height - millimeter (HF)
20
Functional length - inch (LF)
4.921
Functional length - millimeter (LF)
125
Functional width - inch (WF)
0.984
Functional width - millimeter (WF)
25
Hand (Cutting direction)
Left
Head length - inch (LH)
1.551
Head length - millimeter (LH)
39.4
Inclination angle (LAMS)
-7
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.787
Shank height - millimeter (H)
20
Shank width - inch (B)
0.787
Shank width - millimeter (B)
20
Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), left hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
