Image for Illustration purposes only. Actual product may vary
Pramet DSRNL 24 6D 6788582 Turning Toolholder ISO D
MODEL 6788582
$204.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

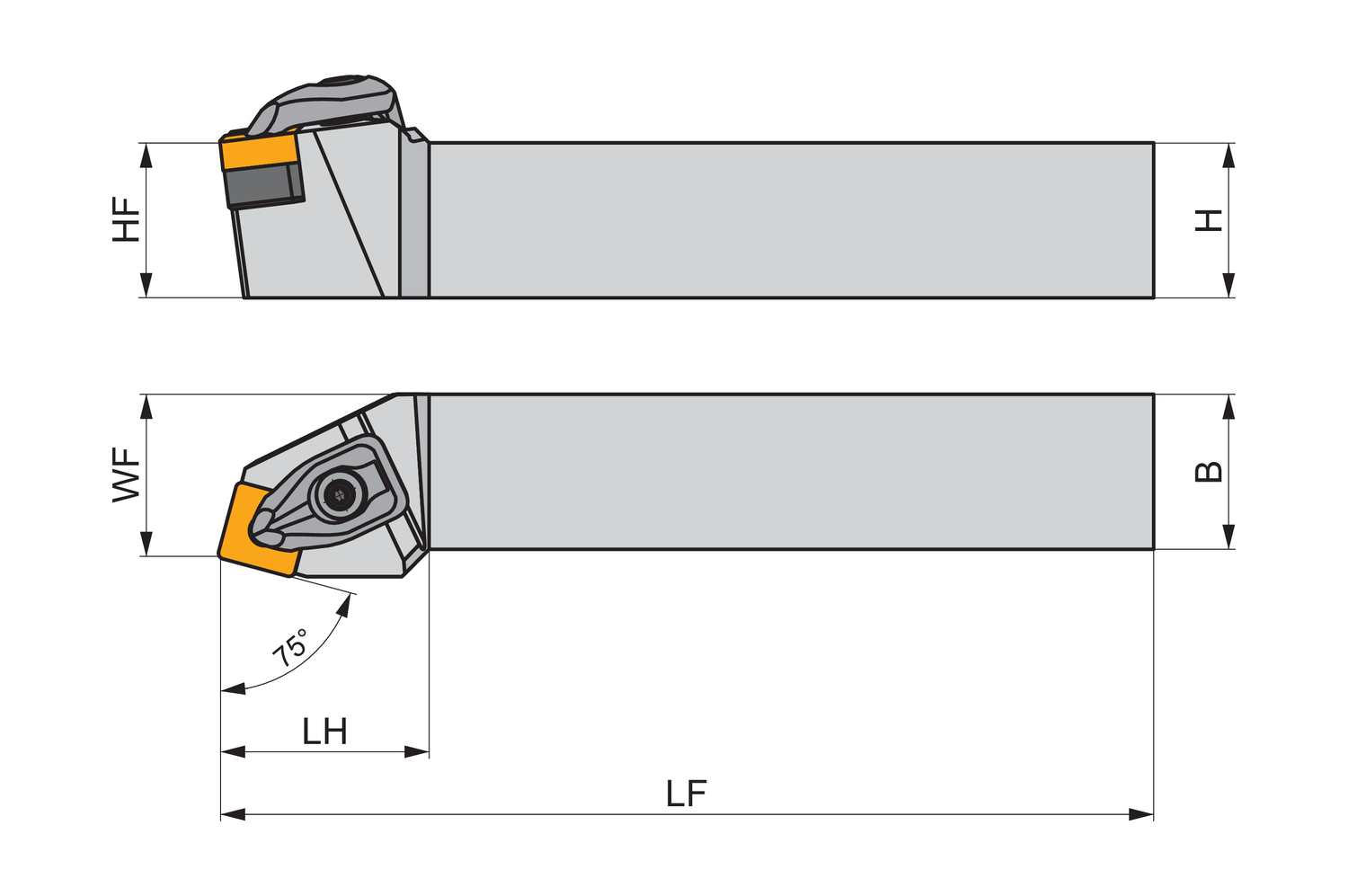

Functional height - inch (HF)
1.5
Functional length - inch (LF)
6
Functional width - inch (WF)
1.697
Head length - inch (LH)
1.83
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
1.5
Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 3/4'', 1/4'' thick (ANSI designation SN.. 64. ), left hand 75° side cutting with off-set shank, 1.1/2'' tool height x 1.1/2'' width x 6'' long for taper turning and longitudinal turning without shoulder
