Pramet DTJNR 12 3B 6788523 Turning Toolholder ISO D
MODEL 6788523
$107.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

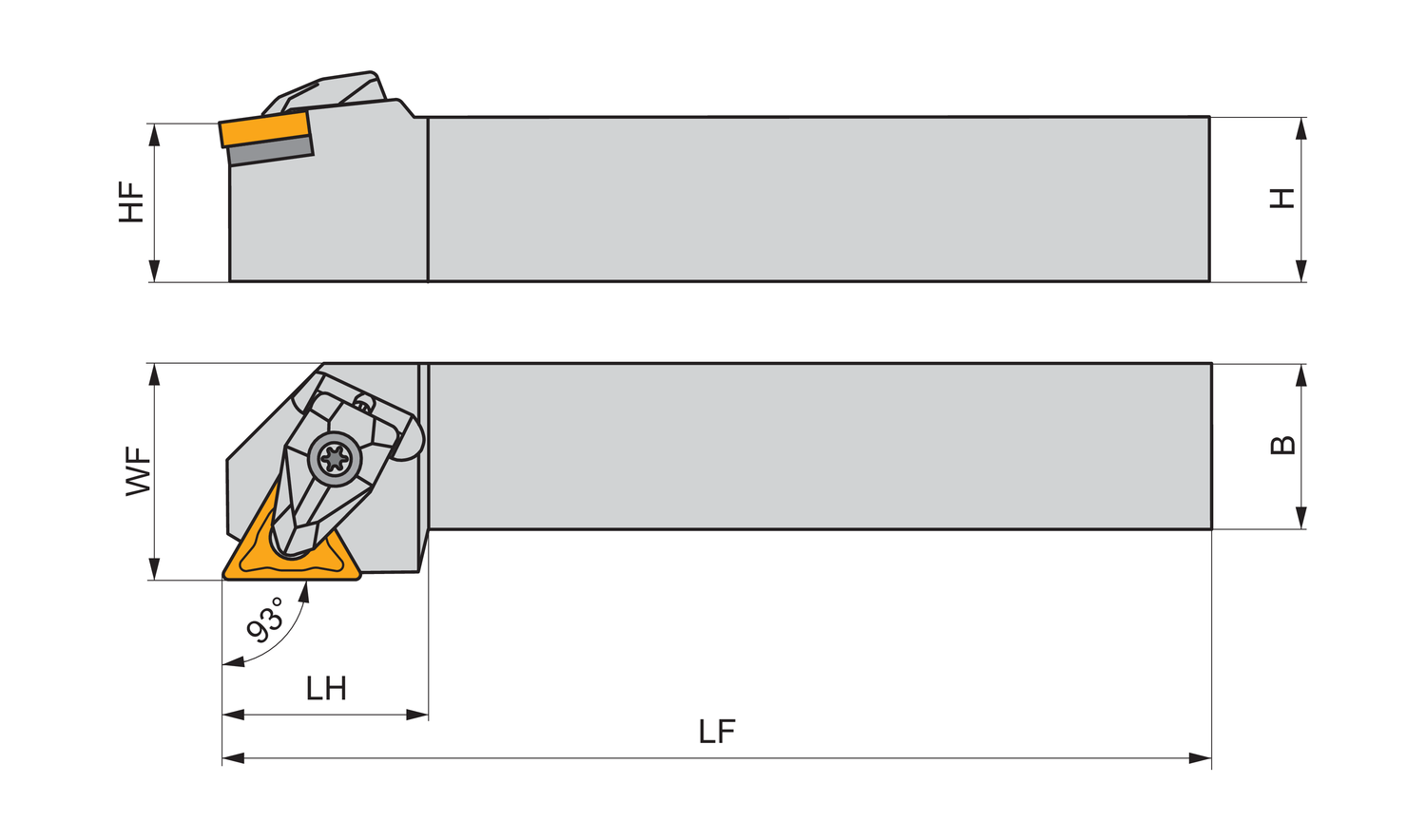

Functional height - inch (HF)
0.75
Functional length - inch (LF)
4.5
Functional width - inch (WF)
1
Head length - inch (LH)
0.953
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
0.75
Double clamp turning tool for holding a triangular negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation TN.. 33. ), right hand 93° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
