Pramet SDJCR 2525 M 15 6761037 Turning Toolholder ISO S
MODEL 6761037
$113.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Right

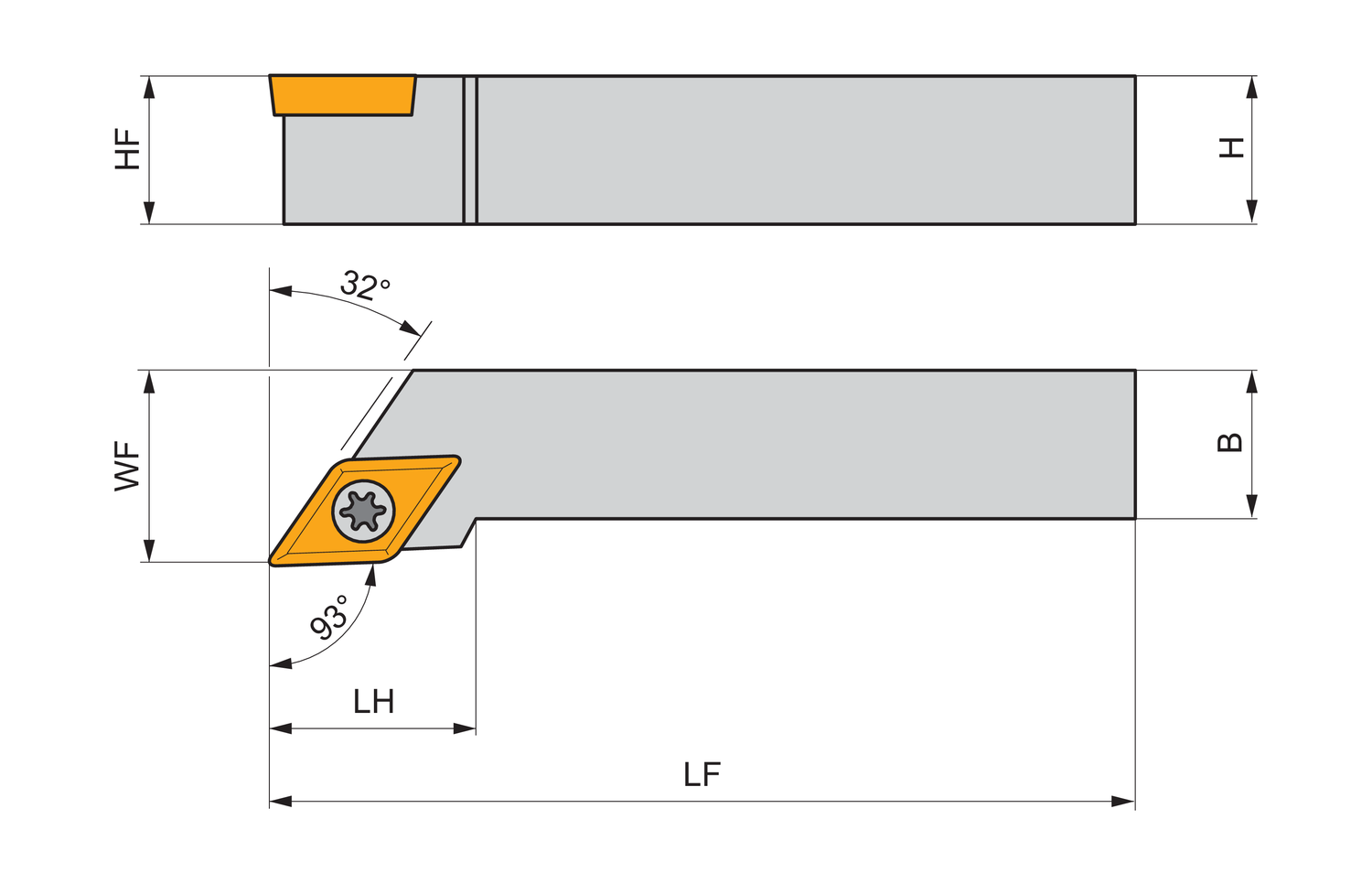

Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
1.26
Functional width - millimeter (WF)
32
Head length - inch (LH)
1.102
Head length - millimeter (LH)
28
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation DC.. 1504.. ), right hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
