Pramet SVVCN 2525 M 16-M-A 6756632 Turning Toolholder ISO S
MODEL 6756632
$133.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

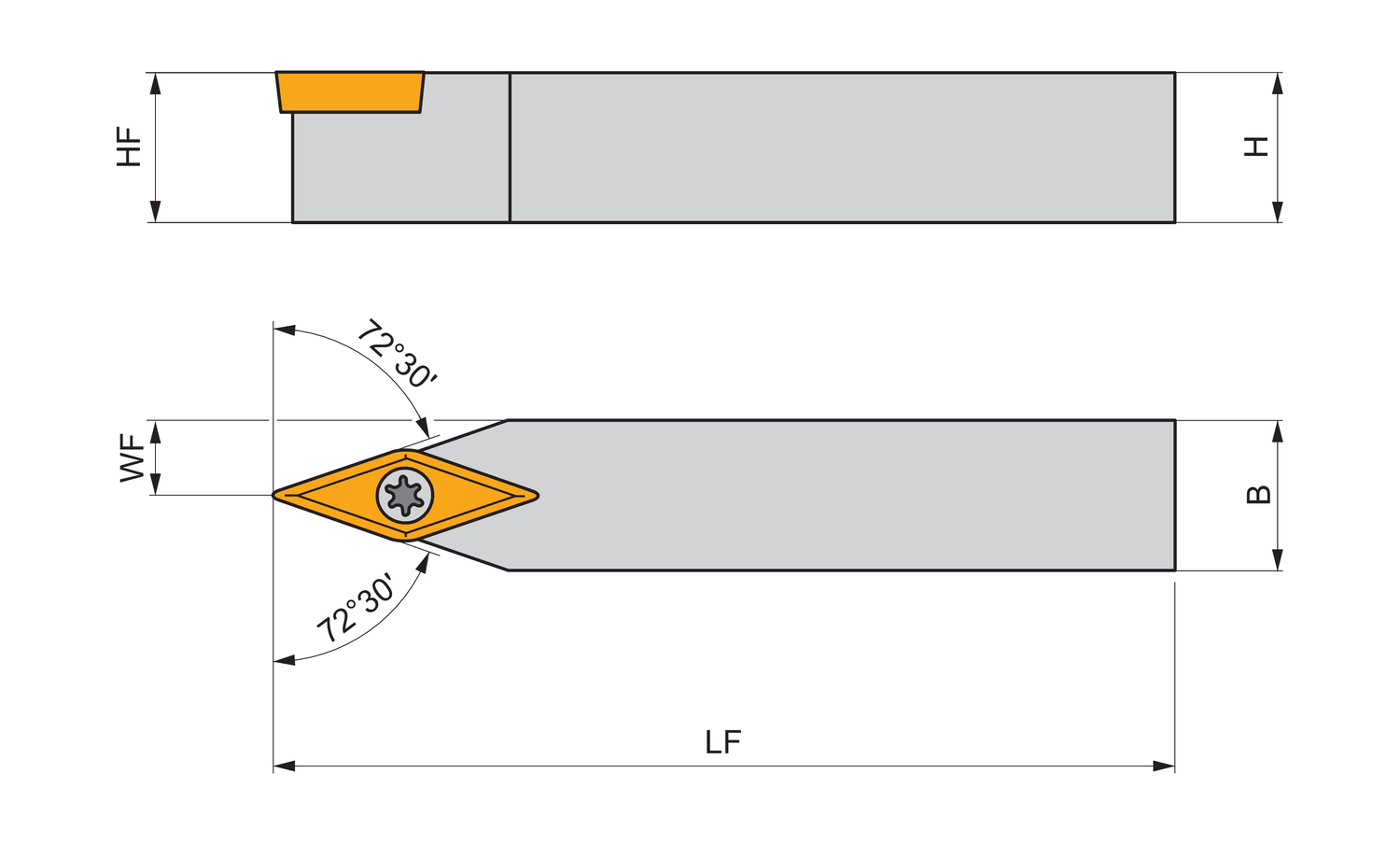

Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Neutral
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.492
Functional width - millimeter (WF)
12.5
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), neutral hand 72°30' side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
