Pramet PNMU 1308DNSR-M:8215 6756162 Milling Insert - Heavy Duty
MODEL 6756162
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$33.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
8215
Coating property (CTP)
1

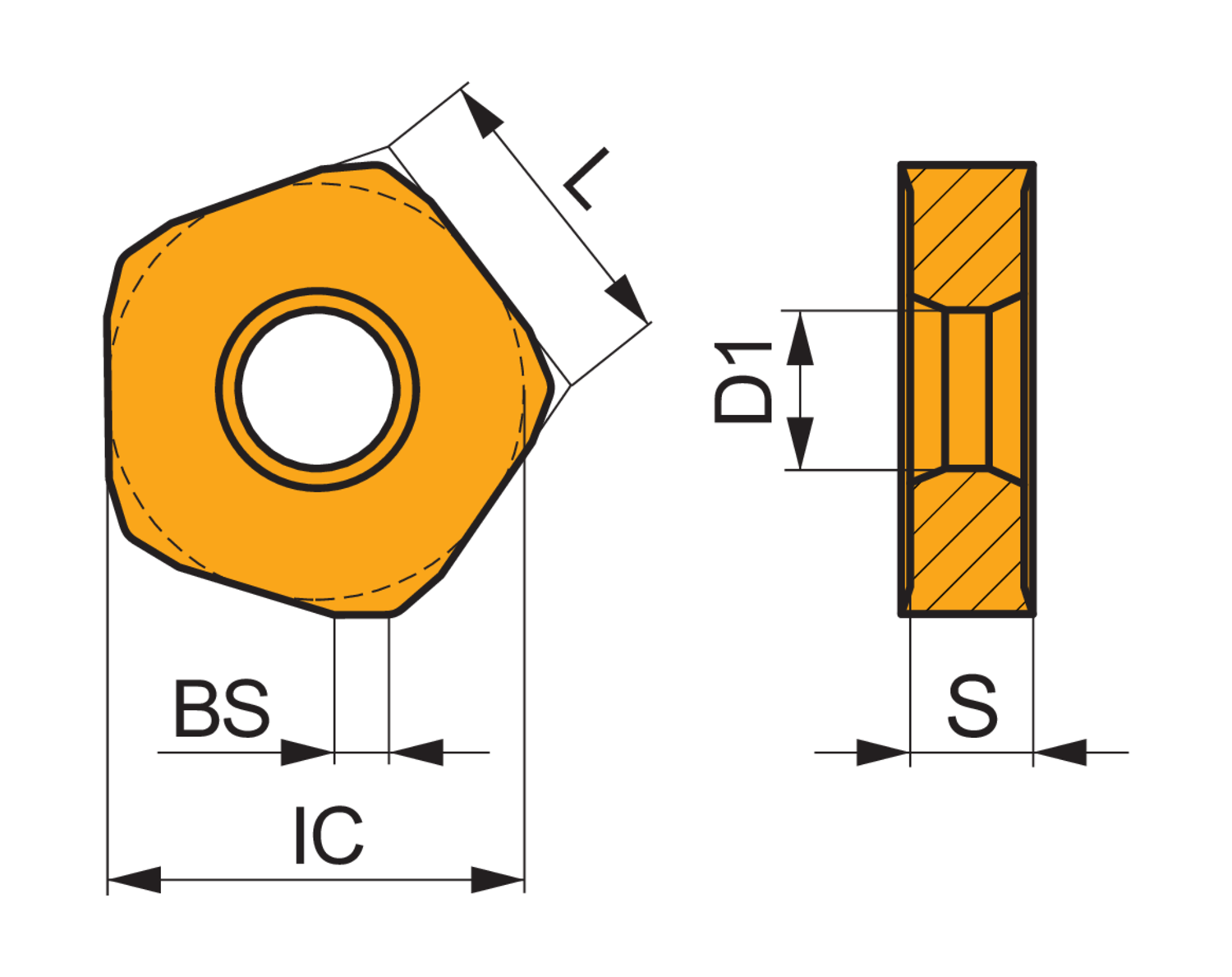

Cutting edge length - inch (L)
0.512
Cutting edge length - millimeter (L)
13
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Feed maximal - millimeter
0.7
Feed minimal - millimeter
0.25
Fixing hole diameter - inch (D1)
0.394
Fixing hole diameter - millimeter (D1)
10
Inscribed circle diameter - inch (IC)
0.961
Inscribed circle diameter - millimeter (IC)
24.4
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Wiper edge length - inch (BS)
0.118
Wiper edge length - millimeter (BS)
3
Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of 10.0mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with face mills SPN13
