MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
Pramet SEET 09T3AFEN:M9340 6755675 Milling Insert - Face
MODEL 6755675
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$12.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M9340
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

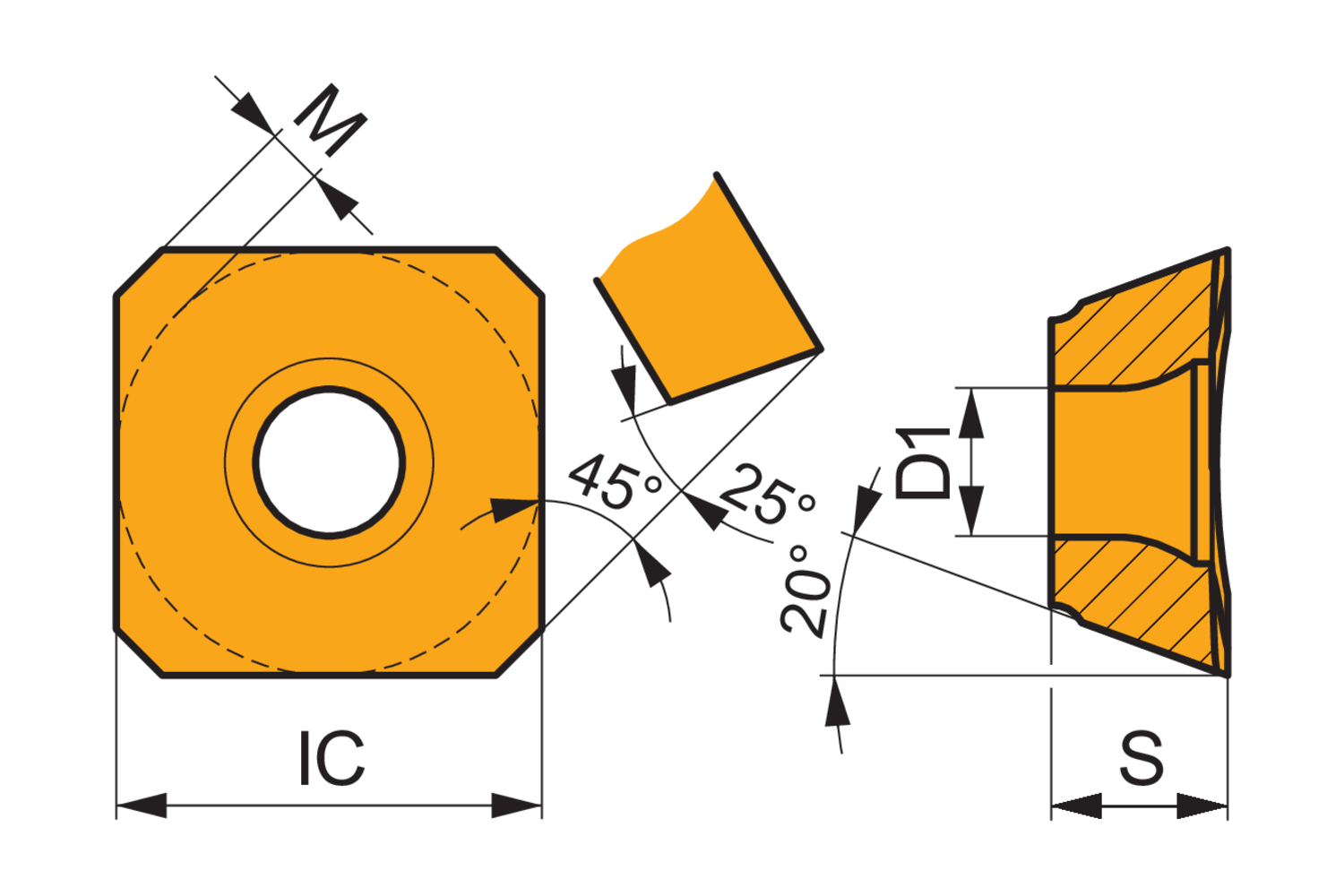

Cutting edge length - inch (L)
0.375
Cutting edge length - millimeter (L)
9.525
Depth of cut maximum - inch (APMX)
0.177
Depth of cut maximum - millimeter (APMX)
4.5
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.26
Feed minimal - millimeter
0.08
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.003
Fixing hole diameter - inch (D1)
0.138
Fixing hole diameter - millimeter (D1)
3.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
m-dimension - inch (M)
0.048
m-dimension - millimeter (M)
1.21
Single-sided milling insert SEET 09T3 with chip-breakers, square for a maximum depth of cut of 4.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with face mills SSE09
