Pramet SNGX 130512PN-R:M8340 6801320 Milling Insert - Heavy Duty
MODEL 6801320
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8340
Coating property (CTP)
1

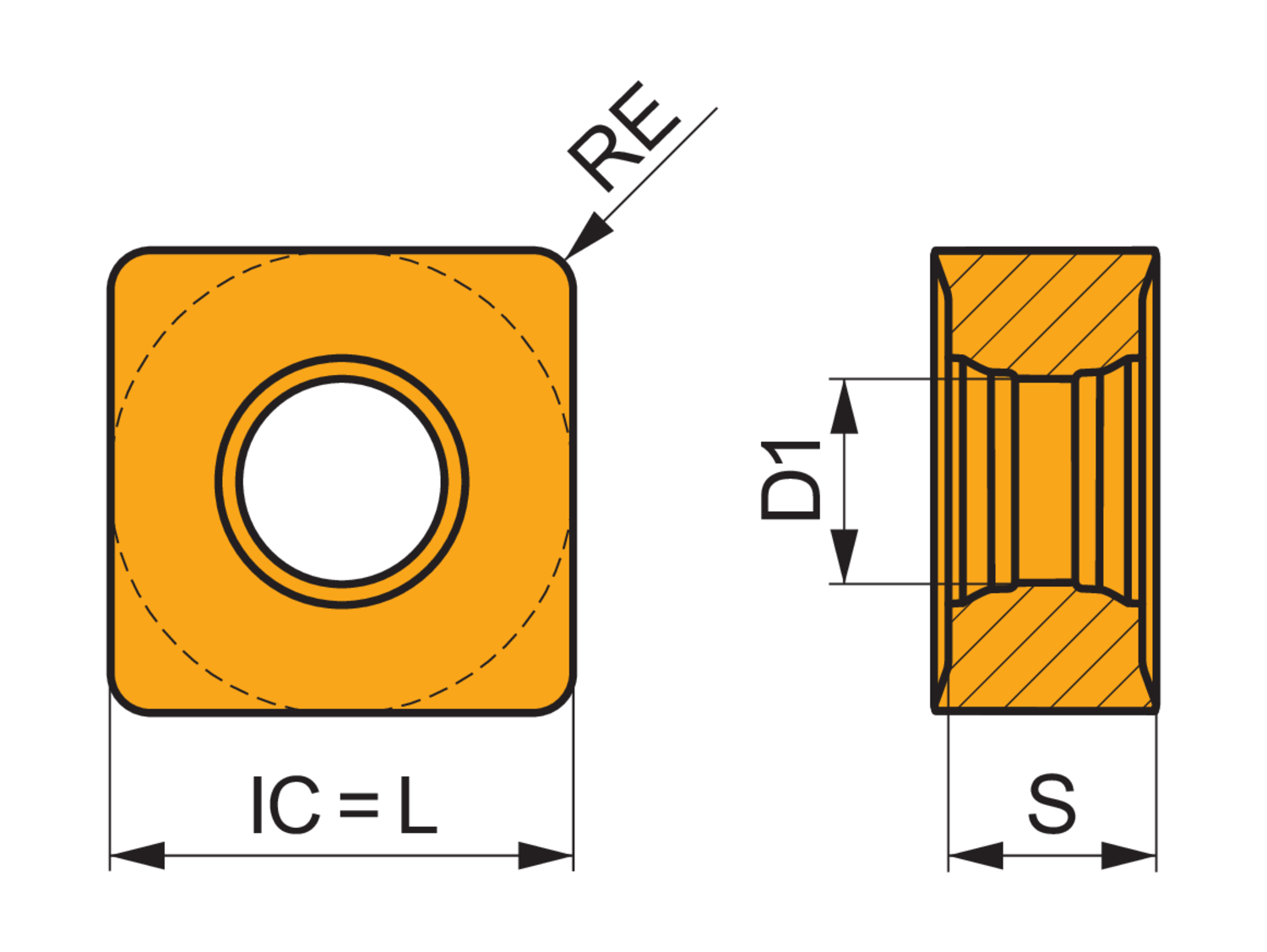

Corner radius - inch (RE)
0.047
Corner radius - millimeter (RE)
1.2
Cutting edge length - inch (L)
0.52
Cutting edge length - millimeter (L)
13.2
Depth of cut maximum - inch (APMX)
0.472
Depth of cut maximum - millimeter (APMX)
12
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.15
Fixing hole diameter - inch (D1)
0.232
Fixing hole diameter - millimeter (D1)
5.9
Inscribed circle diameter - inch (IC)
0.52
Inscribed circle diameter - millimeter (IC)
13.2
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.235
Insert thickness - millimeter (S)
5.96
Double-sided milling insert SNGX 1305, square for a maximum depth of cut of 12.0mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and double facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN
