Pramet 100E2R126M12-ISRC10-C 7455362 Modular Head For Copy And Profile Milling
MODEL 7455362
$244.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

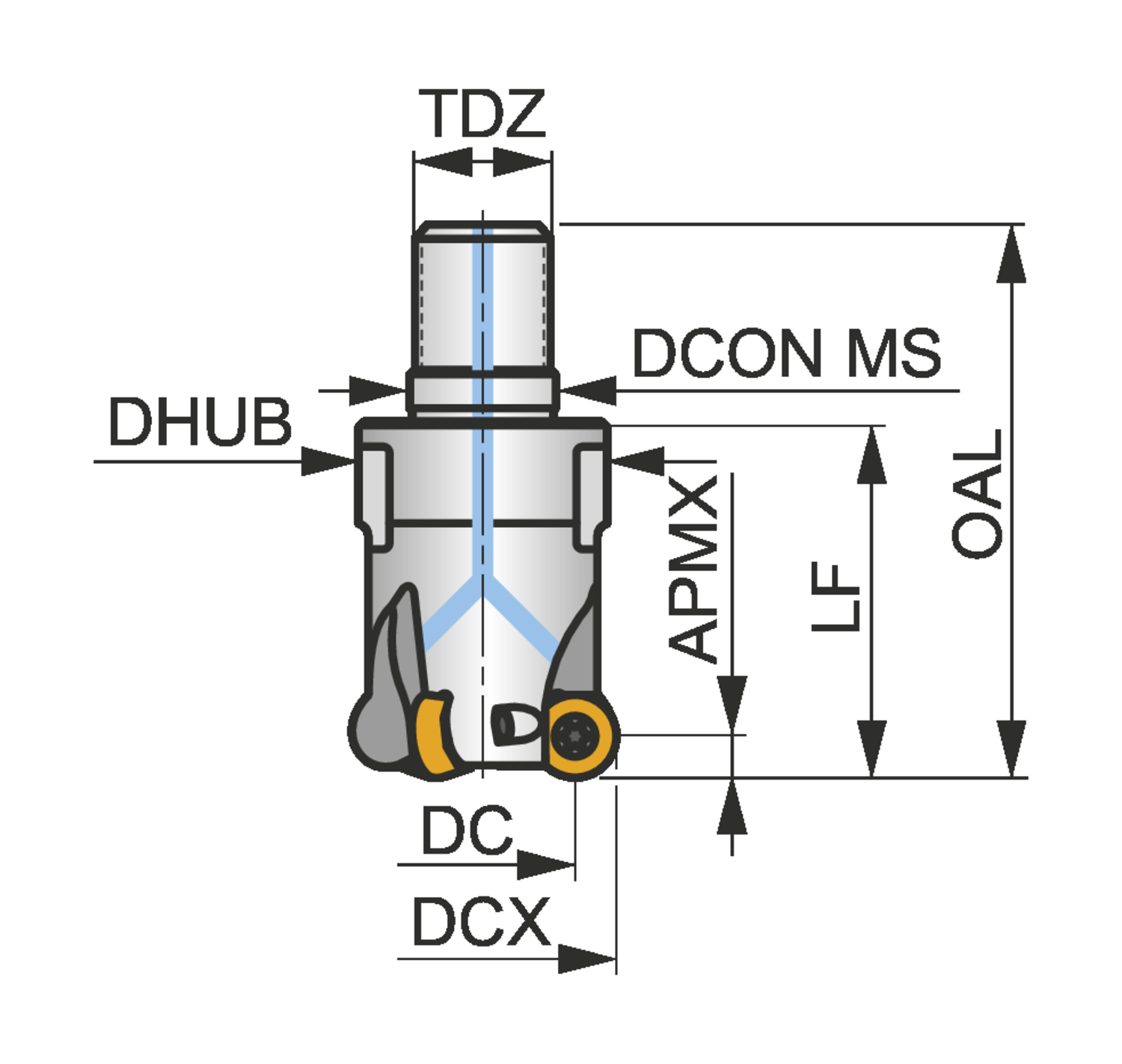

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.606
Cutting diameter - millimeter (DC)
15.4
Cutting diameter maximum - inch (DCX)
1
Cutting diameter maximum - millimeter (DCX)
25.4
Functional length - inch (LF)
1.26
Hand (Cutting direction)
Right
Hub diameter - inch (DHUB)
0.827
Overall length - inch (OAL)
2.126
Overall length - millimeter (OAL)
54
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-3
Rotational speed maximum (RPMX)
20900
Shank
Threaded coupling
Thread diameter size (TDZ)
M12
Copy face mill with double negative geometry which utilises 2 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.000'' with M12 threaded shank for standard modular tool-holders, 1.260'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
