Pramet 20A5R020A18-SCN05C-C 7636578 End Milling Cutter - Copy And Profile
MODEL 7636578
$328.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

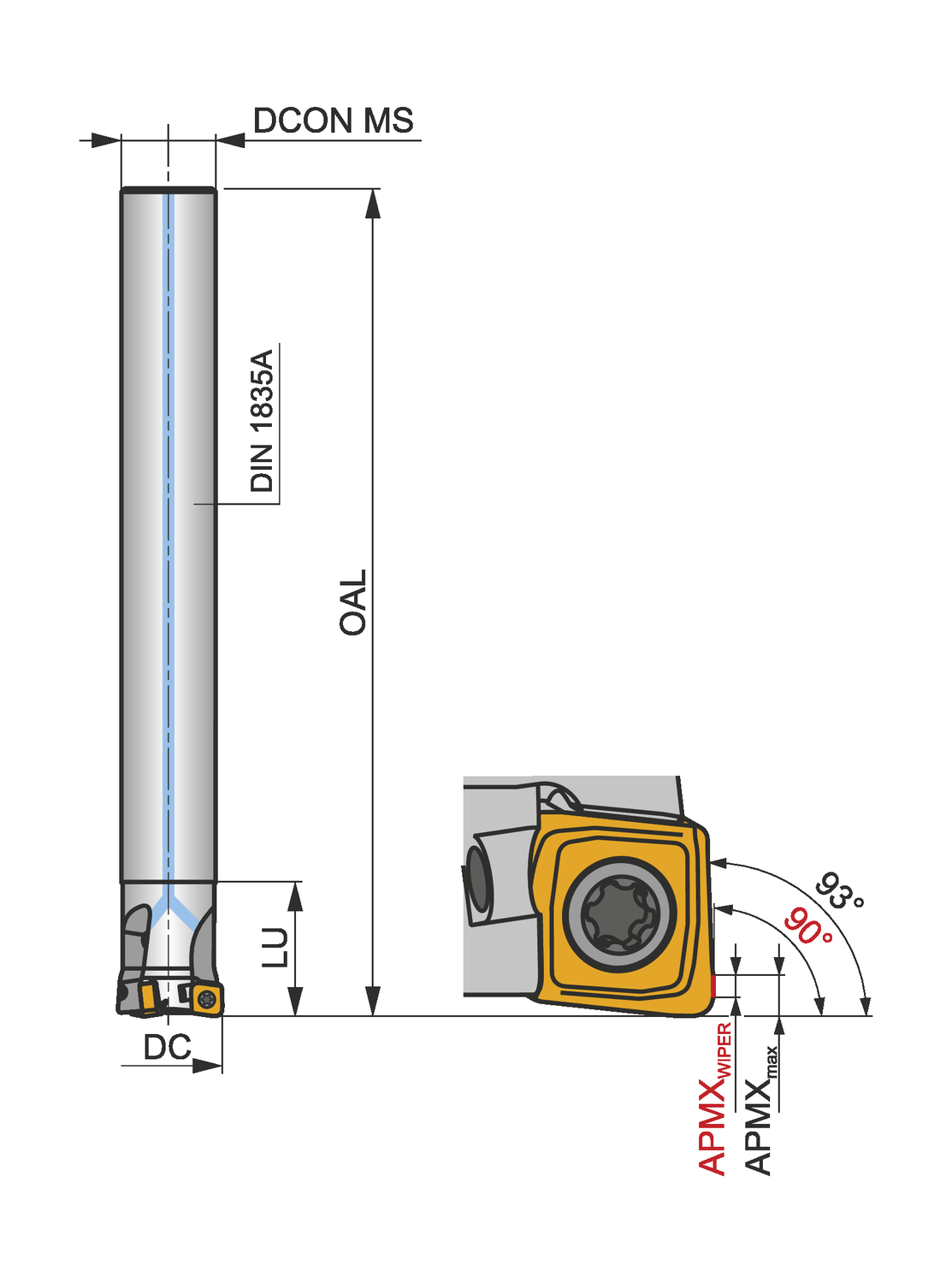

Axial rake angle (GAMP)
-7.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.709
Connection diameter - millimeter (DCON MS)
18
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Overall length - inch (OAL)
6.299
Overall length - millimeter (OAL)
160
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-12.7
Rotational speed maximum (RPMX)
37700
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
20
Copy face mill with double negative geometry which utilises 5 off CNHX 0502.. double-sided inserts, cutting diameter 20mm with 93° approach angle and 18mm parallel shank according to DIN 1835A, 20mm functional and 160mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
