Image for Illustration purposes only. Actual product may vary
Pramet 80A05R-SMORC12-C 7155898 Shell Milling Cutter - Copy And Profile
MODEL 7155898
$405.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

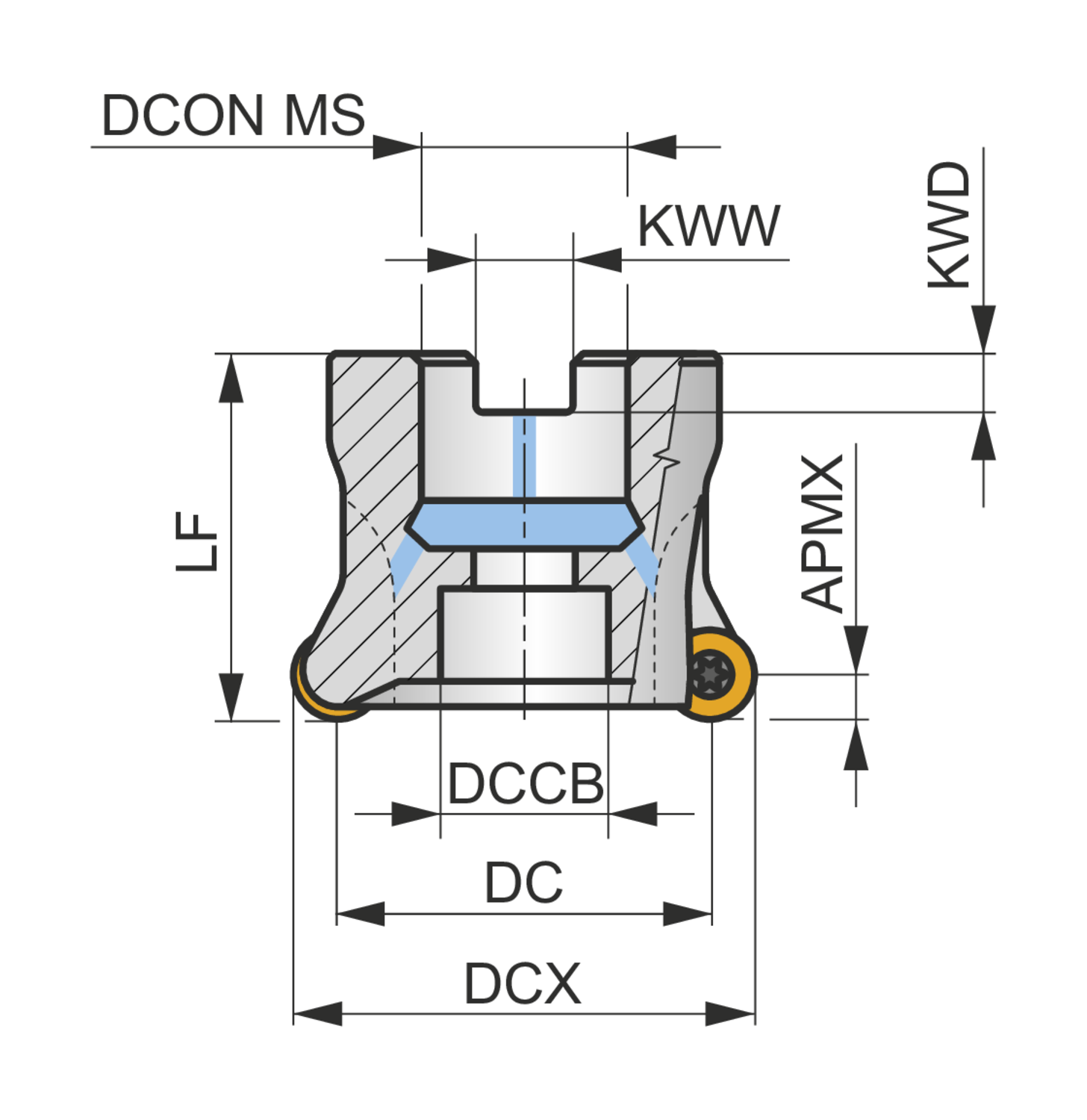

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.457
Counterbore diameter connection bore - millimeter (DCCB)
37
Cutting diameter - inch (DC)
2.677
Cutting diameter - millimeter (DC)
68
Cutting diameter maximum - inch (DCX)
3.15
Cutting diameter maximum - millimeter (DCX)
80
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-1.7
Rotational speed maximum (RPMX)
10400
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 5 off RCMT 1204MO.. single-sided inserts, cutting diameter 80mm with 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 6.0mm
