Image for Illustration purposes only. Actual product may vary
Pramet 050A2R071C050-ISAD07D-C 8017218 End Milling Cutter - Square Shoulder
MODEL 8017218
$234.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cooling (CSP)
1
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
Hand (Cutting direction)
Right
Overall length - inch (OAL)
3.543
Overall length - millimeter (OAL)
90
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
0.709

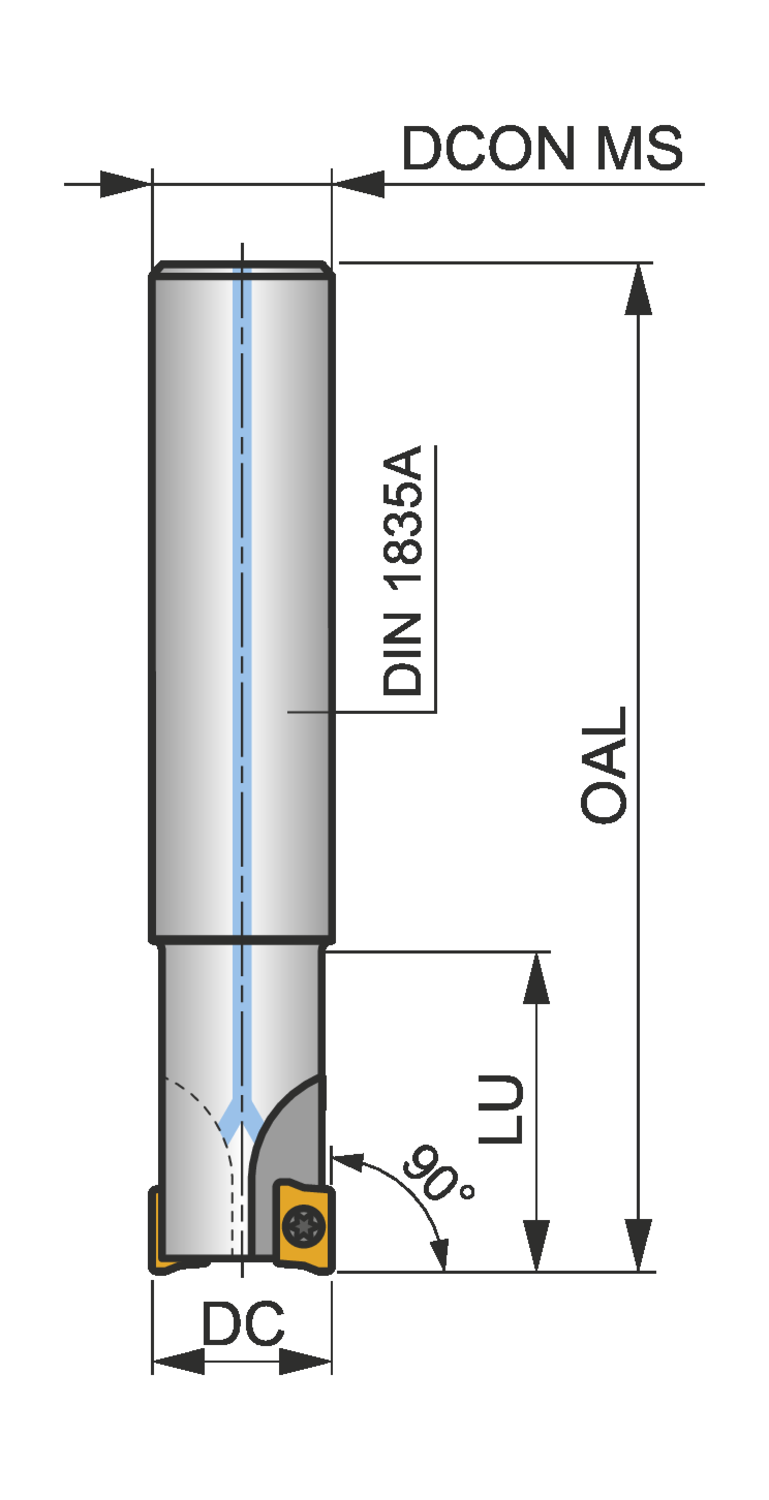

Shoulder mill with positve/negative geometry which utilises 2 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 12,7mm 0,500" with 90° approach angle and 12,7mm 0,500" parallel shank according to DIN 1835A, 18mm 0,709" usable and 90mm 3,543" overall length, through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling
