Pramet 075A3R114C075-ISAD11E-C 6790702 End Milling Cutter - Square Shoulder
MODEL 6790702
$289.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
5.906
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11.5
Rotational speed maximum (RPMX)
27000
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.142

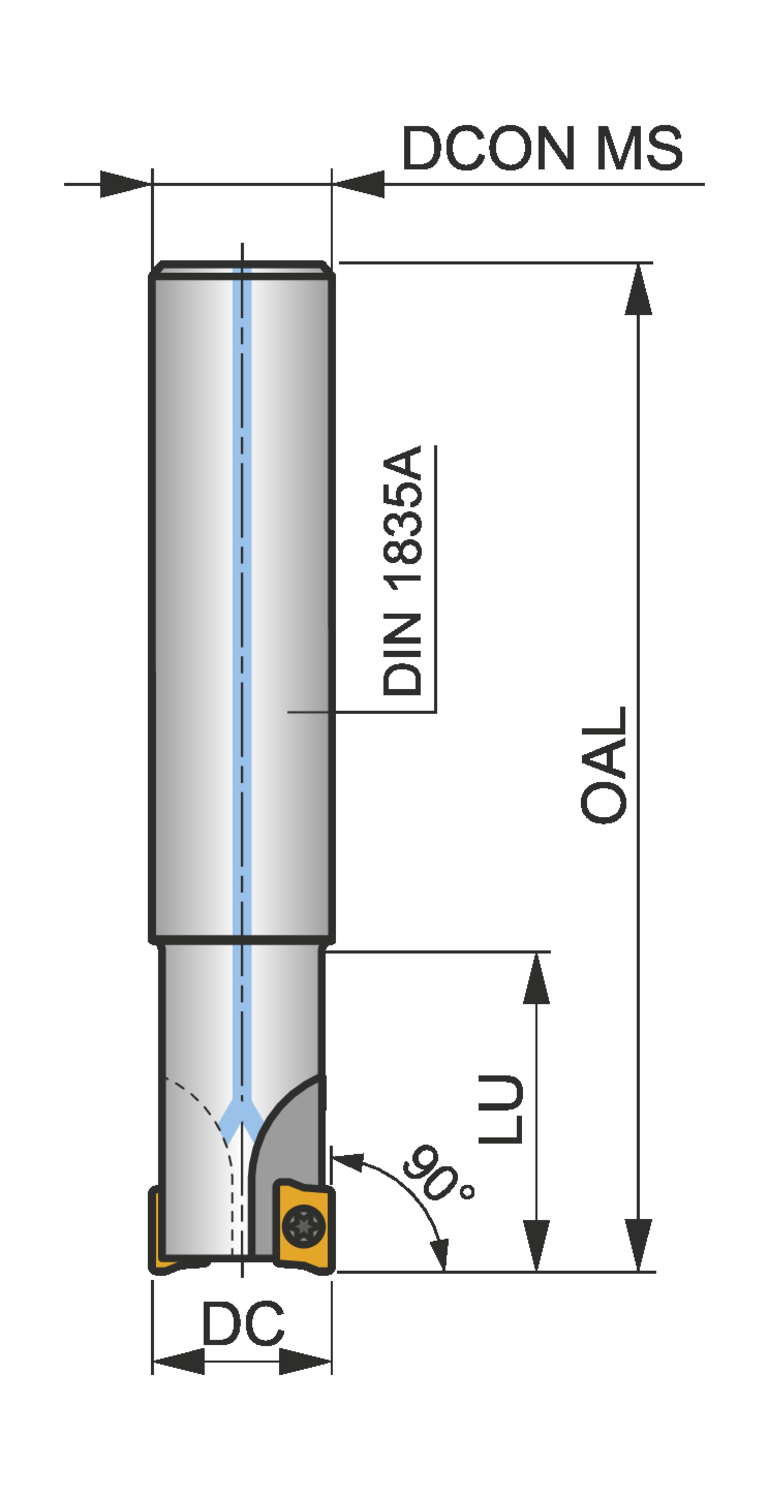

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter .750'' with 90° approach angle and .750'' parallel shank according to DIN 1835A, 1.142'' functional and 5.906'' overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
