Pramet 150J3R276W125-ISAD11E220 6790022 Helical End Milling Cutter - Square Shoulder
MODEL 6790022
$1,087.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

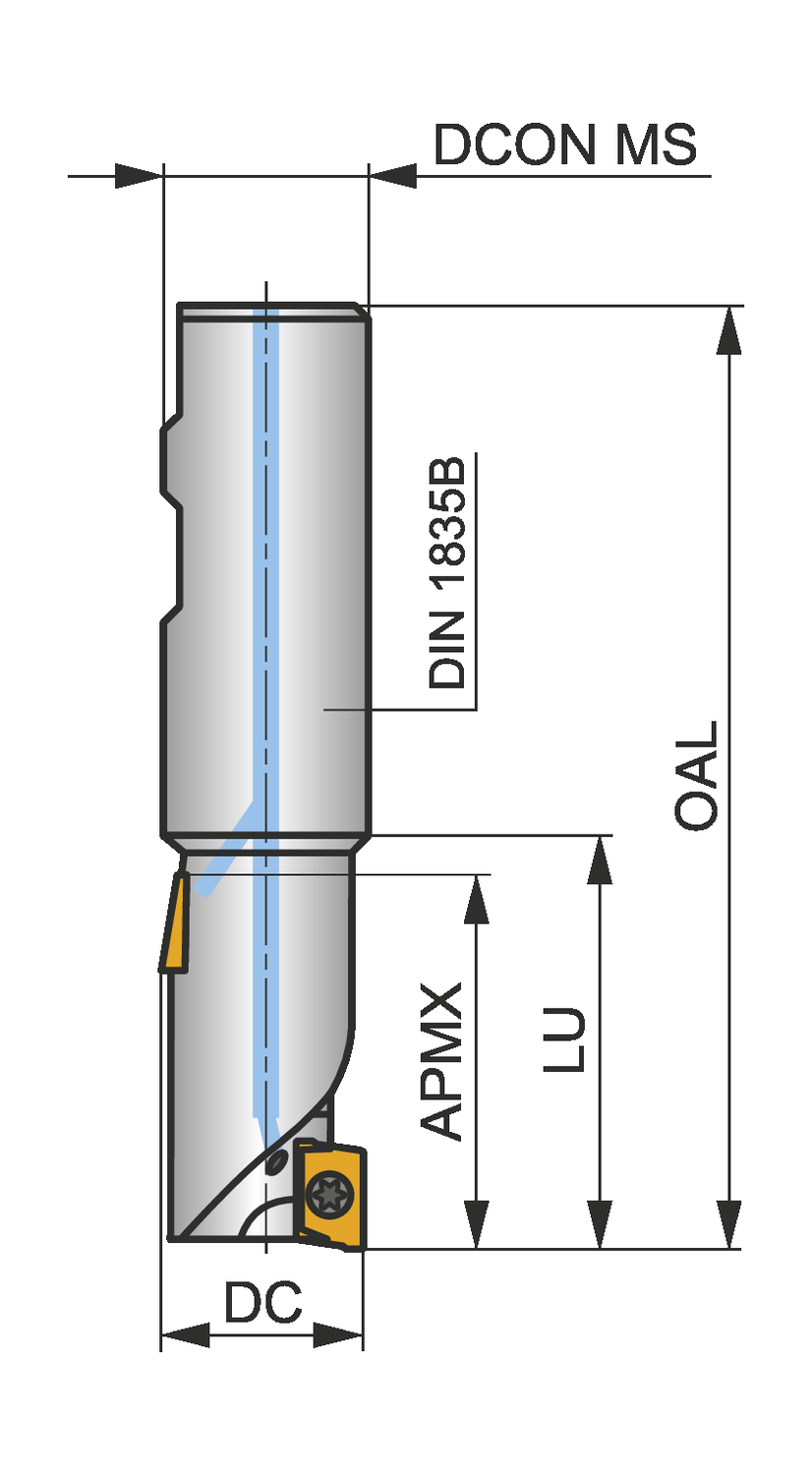

Axial rake angle (GAMP)
11
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.25
Connection diameter - millimeter (DCON MS)
31.8
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.5
Cutting diameter - millimeter (DC)
38.1
Depth of cut maximum - inch (APMX)
2.205
Flute count (NOF)
3
Hand (Cutting direction)
Right
Overall length - inch (OAL)
5.295
Overall length - millimeter (OAL)
134
Peripheral effective cutting edge count (ZEFP)
18
Radial rake angle (GAMF)
-8.1
Rotational speed maximum (RPMX)
19100
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
2.756
Shoulder mill with positve/negative geometry which utilises 18 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.500'' with 90° approach angle and 1.250'' Weldon shank according to DIN 1835B, 2.205'' functional and 5.295'' overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling
