Pramet 160C08R-S90LN16-C 7156001 Shell Milling Cutter - Square Shoulder
MODEL 7156001
$1,028.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole

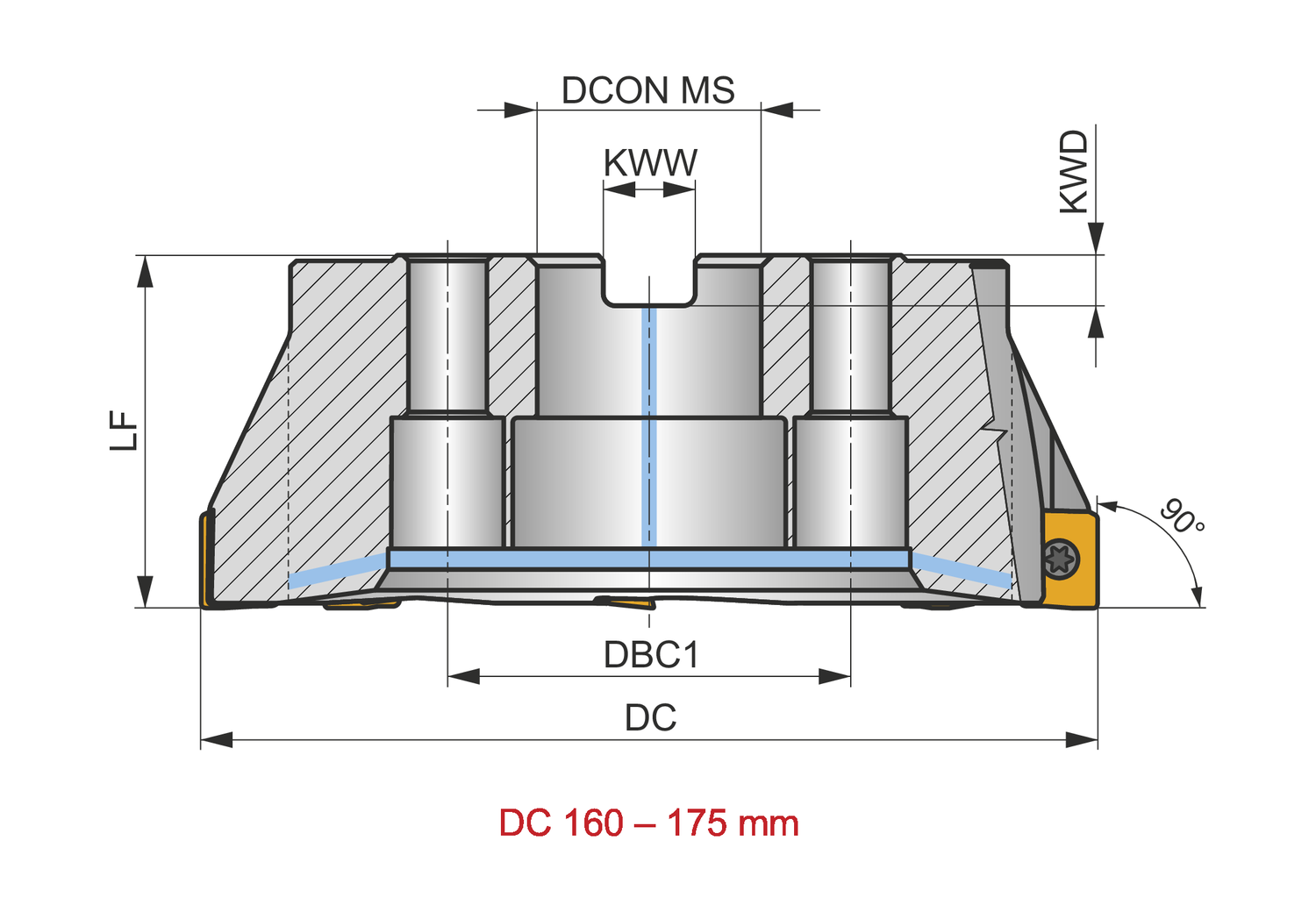

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-10.5
Rotational speed maximum (RPMX)
4700
Shank
Shell mill DIN 8030 C
Shoulder mill with double negative geometry which utilises 8 off LNMU 1607.. or LNGU 1607.. double-sided inserts, cutting diameter 160mm with 90° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 13.0mm
