Pramet 160C09R-S45OD06D 6756820 Shell Milling Cutter - Face
MODEL 6756820
$1,083.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

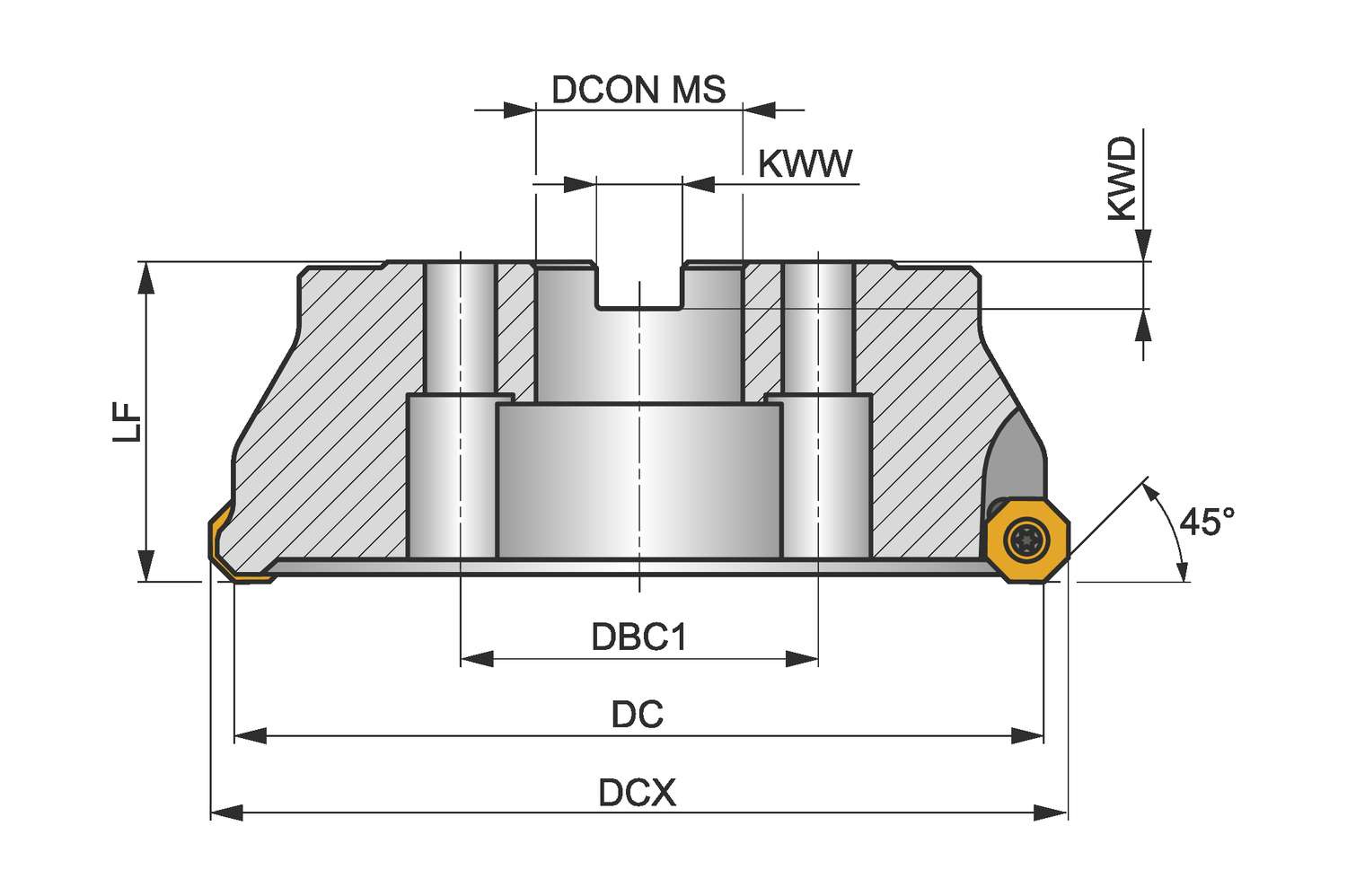

Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
0
Counterbore diameter connection bore - millimeter (DCCB)
56
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Cutting diameter maximum - inch (DCX)
6.673
Cutting diameter maximum - millimeter (DCX)
169.5
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
9
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
9
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
5500
Shank
Shell mill DIN 8030 C
Face mill with positve/negative geometry which utilises 9 off OD.. 0605ZZ.. or RP.. 1505MO.. single-sided inserts, cutting diameter 160 to maximum 169.5mm with 45° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length and differential pitch for face milling and chamfering with a maximum depth of cut of 3.1 (8.6)mm
