Image for Illustration purposes only. Actual product may vary
Pramet 20A3R032B20-SAP10D-C 6758366 End Milling Cutter - Square Shoulder
MODEL 6758366
$323.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

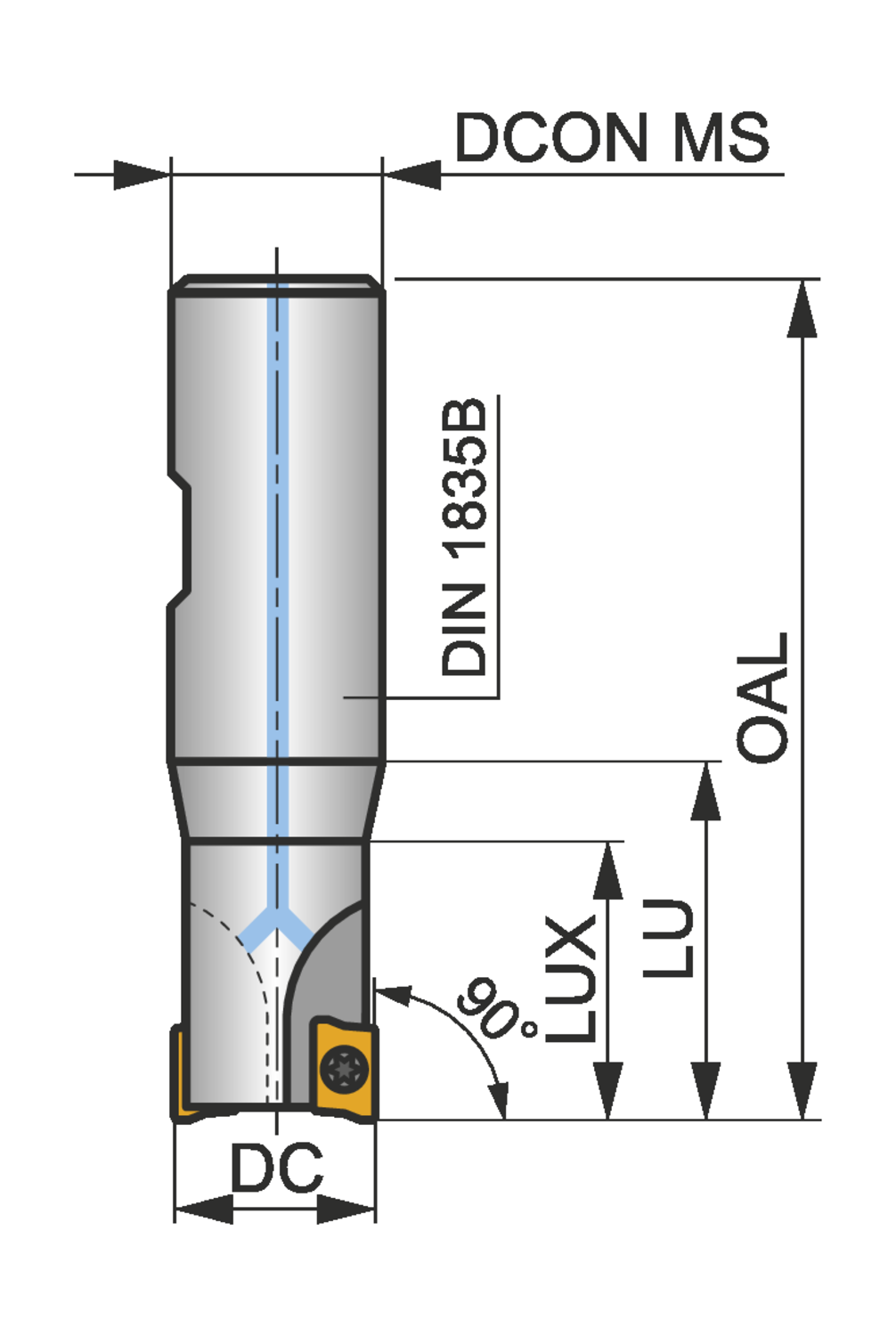

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
3.228
Overall length - millimeter (OAL)
82
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Rotational speed maximum (RPMX)
27600
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
32
Shoulder mill with double positive geometry which utilises 3 off APKT 1003.. single-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm Weldon shank according to DIN 1835B, 82mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
