Pramet 20A3R035E03-SAD11E-C 6758929 End Milling Cutter - Square Shoulder
MODEL 6758929
$297.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
3
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Functional length - millimeter (LF)
35
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
4.567
Overall length - millimeter (OAL)
116
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11.5
Rotational speed maximum (RPMX)
27000
Shank
Morse shank DIN 228-1
Usable Length - millimeter (LU)
30

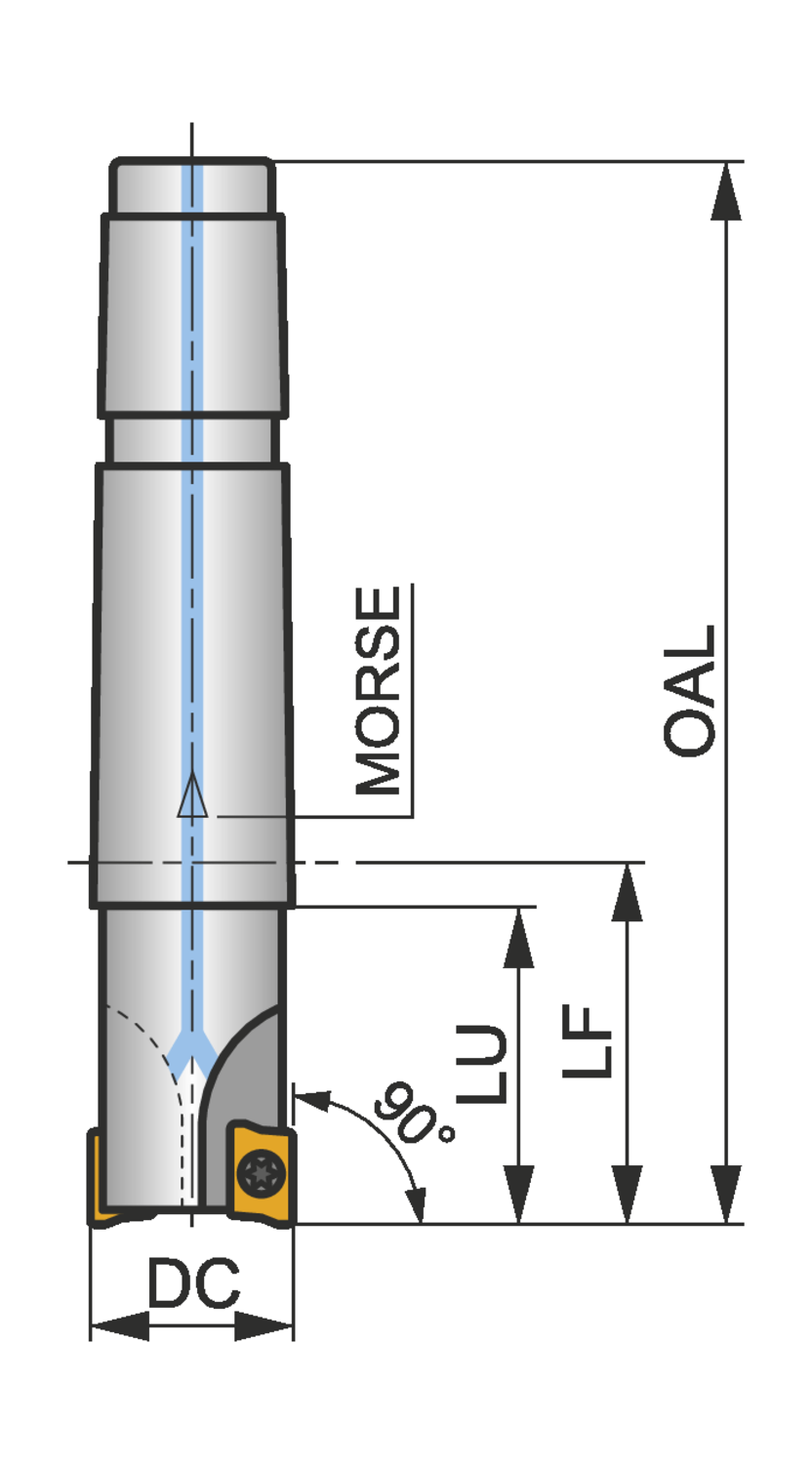

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and MT 3 morse taper shank according to DIN 228-1A, 30mm functional and 116mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
