Pramet 804D-18-72-S25 6758990 Indexable Drill 4 x D
MODEL 6758990
$467.84 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

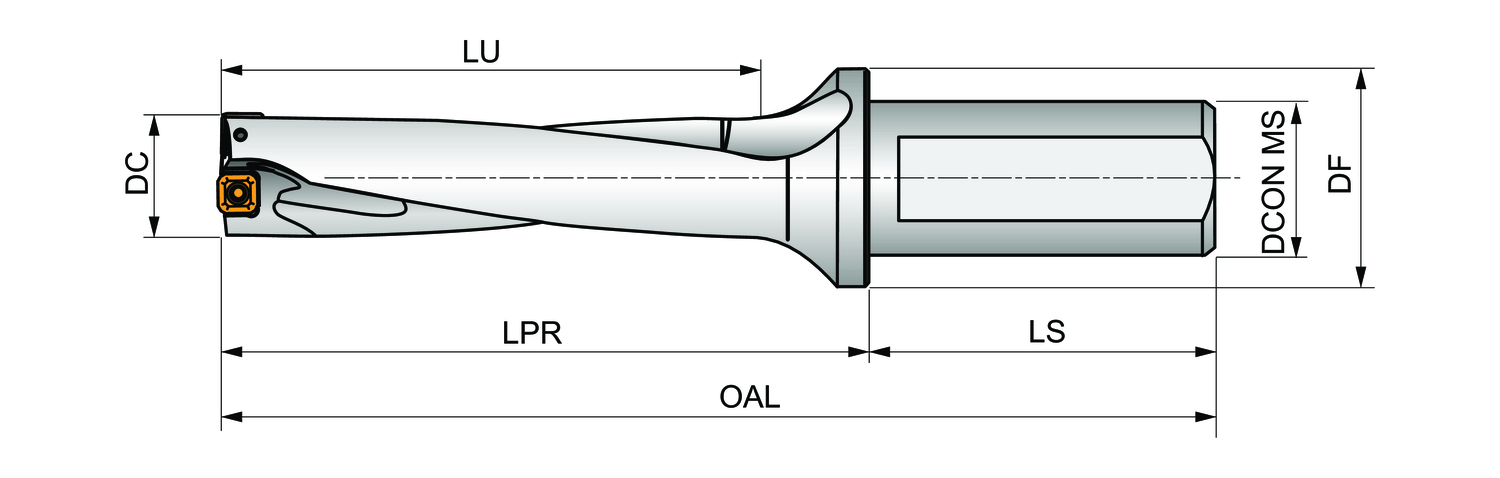

Adjustment limit maximum - millimeter (ADJLX)
0.25
Adjustment limit minimum - millimeter (ADJLN)
0.35
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.709
Cutting diameter - millimeter (DC)
18
Cutting edge count (CEDC)
1
Depth of cut maximum - inch (APMX)
2.8346
Depth of cut maximum - millimeter (APMX)
72
Flange diameter - millimeter (DF)
35
Overall length - inch (OAL)
6.024
Overall length - millimeter (OAL)
153
Protruding length - inch (LPR)
3.8189
Protruding length - millimeter (LPR)
97
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.2047
Shank length - millimeter (LS)
56
Usable length (ULDR)
4
Usable Length - inch (LU)
3.0315
Usable Length - millimeter (LU)
77
Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0502.. insert in the peripheral pocket, cutting diameter 18mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D
