Image for Illustration purposes only. Actual product may vary
Pramet D 08590 402 6760888 Boring System Head - Cartridge Type
MODEL 6760888
$1,402.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

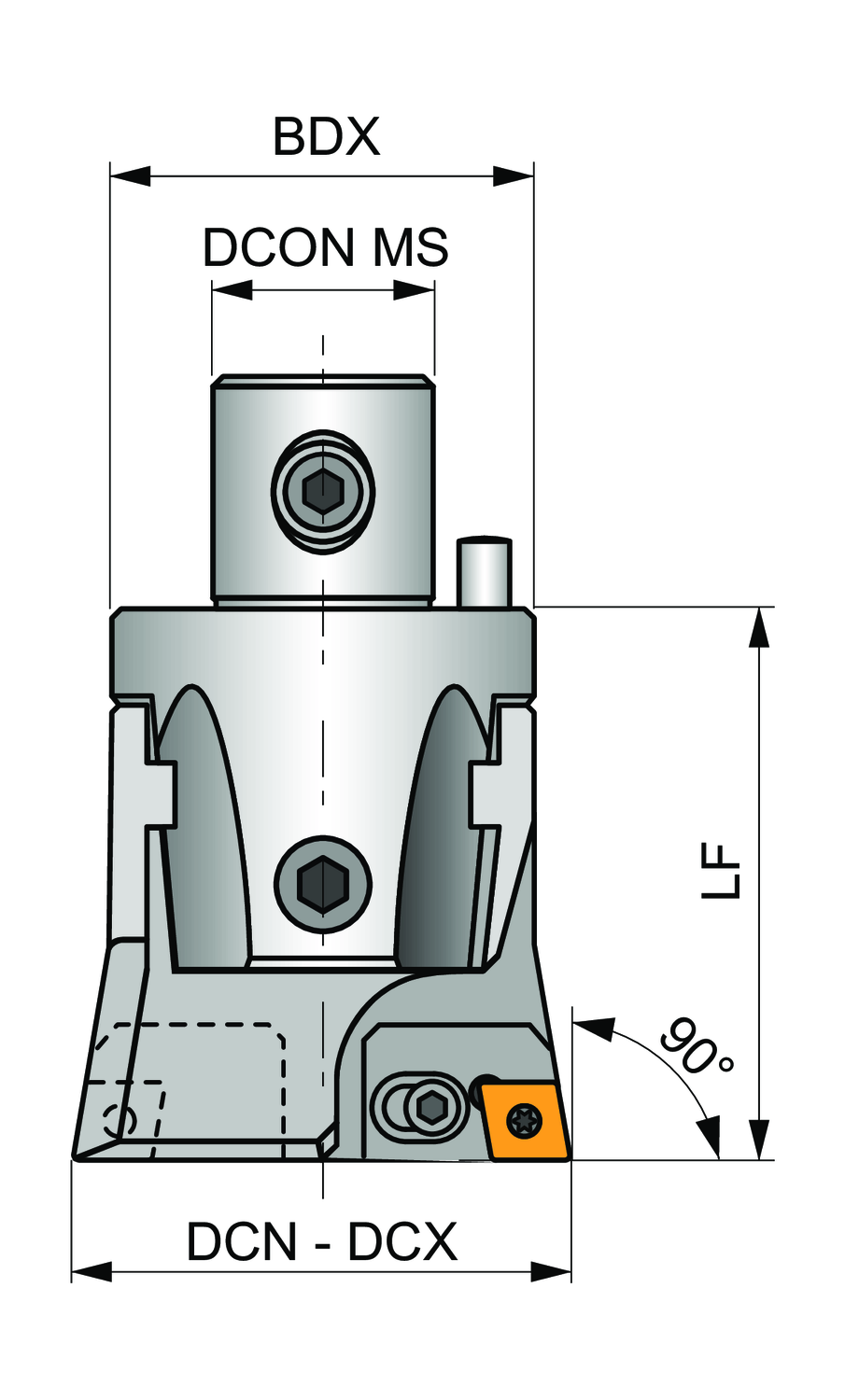

Body diameter maximum - millimeter (BDX)
85
Clamping Type Code (MTP)
System SP
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Connection size code machine side (CZC MS)
85
Cutting diameter maximum - inch (DCX)
4.921
Cutting diameter maximum - millimeter (DCX)
125
Cutting diameter minimum - millimeter (DCN)
100
Cutting edge count (CEDC)
2
Functional length - millimeter (LF)
100
Possible use
Finishing
Primary use
Medium machining
Tool cutting edge angle (KAPR)
90
Tools linked to the tool
3CT 90 402
Cartridge type boring head size 85 with 90° approach angle and synchronized adjustment for roughing within a diamerter range of 100 to 125mm, complete with 3CT 90 402 cartridges to hold CC.. 1204.. inserts for longitudinal boring with and without shoulder
