Dormer A2661.0X3.15 7191762 118° Center Drill - 60D 1.00 mm x 3.15 mm
MODEL 7191762
$15.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplication Material
P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Center drilling 60°
Basic Standard
DIN 333A
Coating
TiAlN
Coating process
PVD
Coating property (CTP)
1

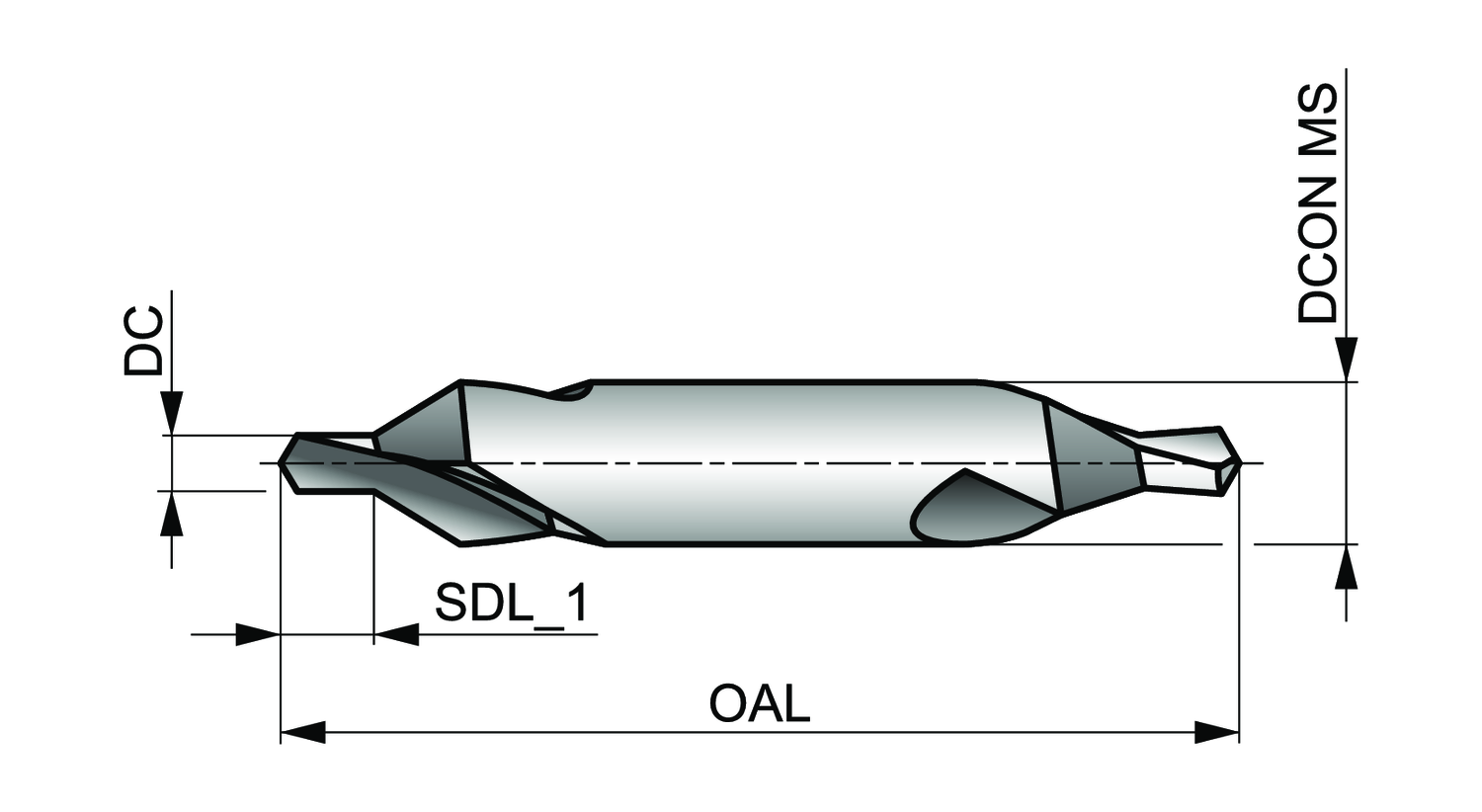

Connection diameter - inch (DCON MS)
0.124
Connection diameter - millimeter (DCON MS)
3.15
Cutting diameter - inch (DC)
0.0394
Cutting diameter - millimeter (DC)
1
EDP number
47191762
Hand (Cutting direction)
Right
Material
HSS-E
Material application
K - Cast iron, P - Steel and cast steel
MID number
7191762
Ordering code ANSI
A2661.0X3.15
Overall length - inch (OAL)
1.2205
Overall length - millimeter (OAL)
31
Point Angle (SIG)
118
Shank
Cylindrical shank
Step included angle (STA)
60
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron.
If you’ve been around the machining world for some time, you should know several rules of thumb that make your work easier. One of these rules includes choosing drills that are made to help your workflow and reduce unnecessary expenses. It’s always nice to have a faster way to accomplish a task. If a machine will make your job easier, grab it with both hands.
