Image for Illustration purposes only. Actual product may vary
Dormer A9003.5 5971123 130° PFX Jobber Drill DIN/ANSI 3.50 mm
MODEL 5971123
$8.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN/ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

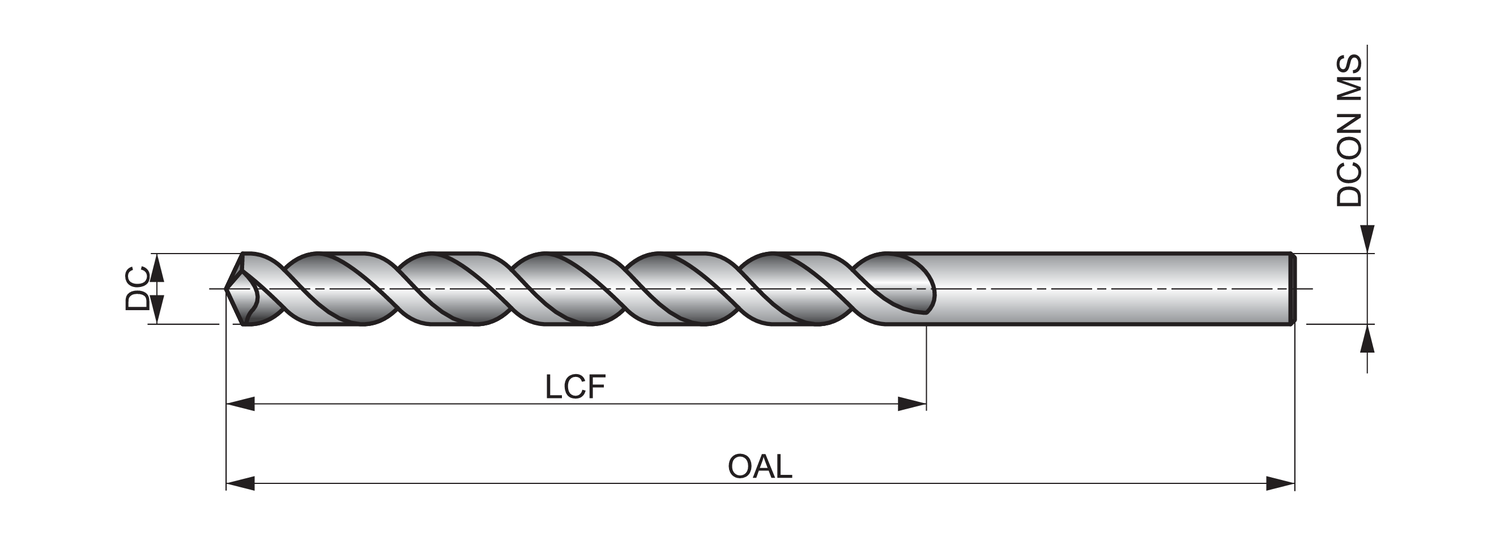

Connection diameter - millimeter (DCON MS)
3.5
Cutting diameter - inch (DC)
0.1378
Cutting diameter - millimeter (DC)
3.5
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Jobber
EDP number
46586
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.5354
Length chip flute - millimeter (LCF)
39
Material
HSS-E
Material application
M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5971123
Ordering code ANSI
A9003.5
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Point Angle (SIG)
130
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
The A900 from Dormer is one of our PFX range of drills.
These drill have a special parabolic flute design which means you can drill deep holes in a single pass – no more need for “pecking”. The 130 degree point angle helps to self-center the drill and also means less force is needed to penetrate the workpiece material.
The A900 comes with a bright finish to prevent workpiece material from sticking to the cutting edge and is made from High Speed cobalt so can be used for drilling a number of materials including stainless steels, aluminium and other steels.
Available in a large range of fractional and metric diameters, the A900 PFX drill is a high performance tool and is capable of producing high quality and accurate holes (H10 hole tolerance) even at high speeds and feeds
